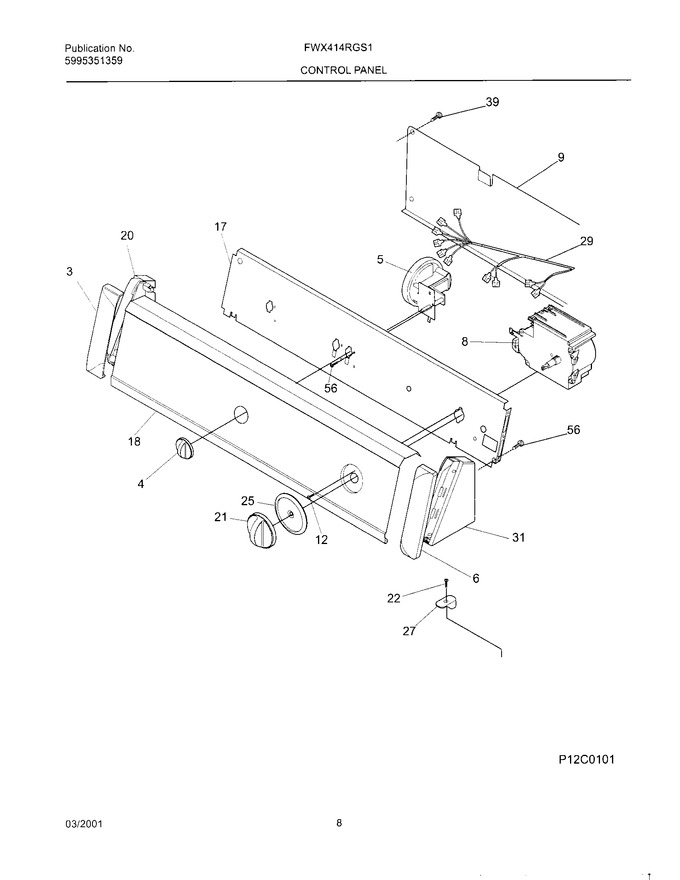

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
5	131047500		Switch-pressure				$ 186.53
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131986100		Timer-elec D Mallory		Appelez-nous	-
9	131141730		Backsheet		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131580006		Bracket-control		Appelez-nous	-
18	131882600		Trimplate Fda5dtnf-2		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer White				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592101		Pointer-timer-wht		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	134001100		Harn D Emerson,29		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
