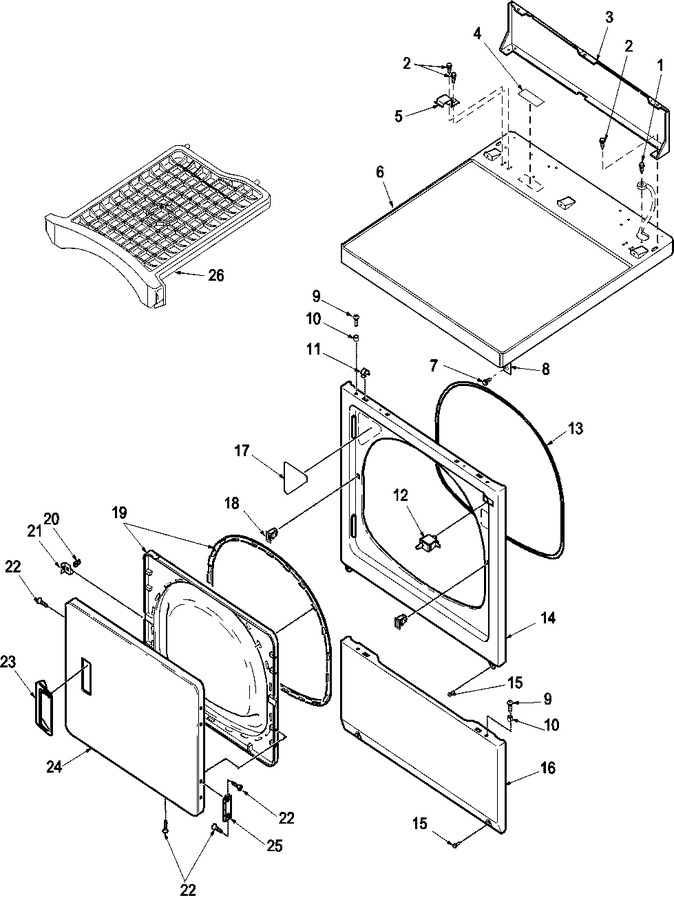

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
3	500343		Panel,back(home Hood)		Appelez-nous	-
4	24903		Sticker,disconnect Pow		Appelez-nous	-
5	Y503876		Clip, Hold Down		Appelez-nous	-
6	500085WP		Cabinet Top, White		Appelez-nous	-
7	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
8	500084		Bracket, L-top		Appelez-nous	-
9	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
10	56079		Locater, Panel			Immediately	$ 6.95
11	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
12	W10169313		Switch, Door   (Replaces: Y504570)			Immediately	$ 29.18
13	504005		Seal, Front Panel				$ 49.57
14	503656W		Panel, Front (wht)		Appelez-nous	-
15	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
16	503796W		Panel, Access (comml)		Appelez-nous	-
17	500281		Sticker		Appelez-nous	-
18	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
19	503643W		Assembly, Seal & Liner		Appelez-nous	-
20	LA-1003		Strike, Door (metal)   (Replaces: 500039)			Immediately	$ 24.51
21	500223		Bracke, Door Strike		Appelez-nous	-
22	505050		Screw				$ 40.09
23	503646W		Pull, Door (wht)		Appelez-nous	-
24	503654W		Door, Dryer (wht)		Appelez-nous	-
25	Y503676		Hinge, Door & Top				$ 40.54
26	Y504105		Rack,drying		Appelez-nous	-
