SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Door And Front, Access, And Top Panels


04 - F Bulkhead, Air Duct, Seal And Cylinder


05 - Miscellaeous Information


06 - Motor And Fan Assemblies


07 - R Bulkhead, Seal, Rollers, And Air Duct


08 - Terminals


09 - Terminals And Motor Connection Block

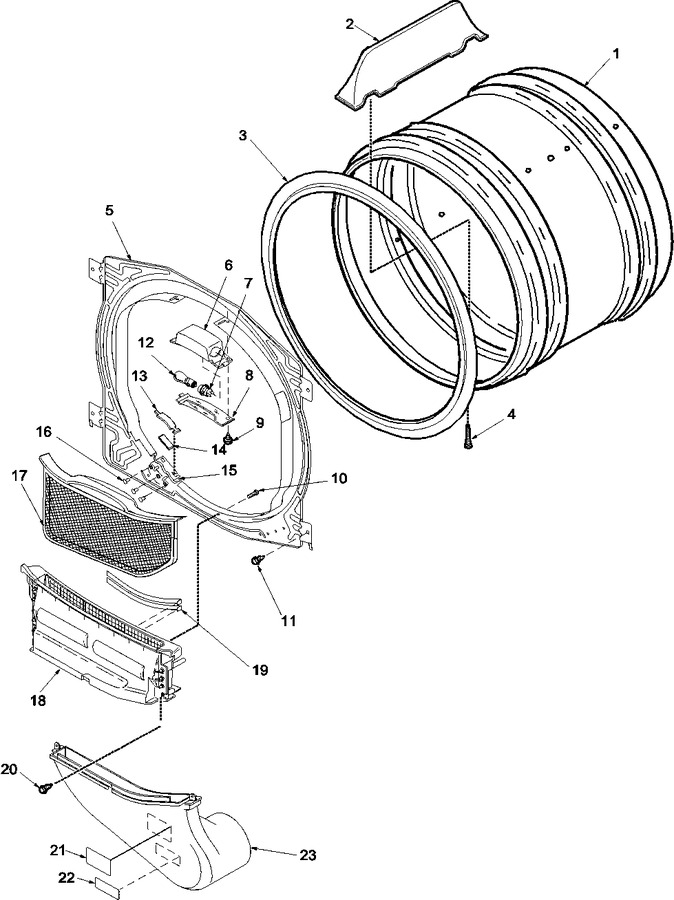

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y504468		Assy Cylinder		Appelez-nous	-
2	503703		Baffle, Cylinder (wht)				$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap		Appelez-nous	-
5	503616W		Assy, Blkhd Front Lit (wht)		Appelez-nous	-
6	503622		Housing, Cylinder Light		Appelez-nous	-
7	504458		Holder, Lamp		Appelez-nous	-
8	Y503623		Lens, Light		Appelez-nous	-
9	500227		Screw, No.8ab-16x7/16ph				$ 14.82
12	W10857122		Light, Cylinder   (Replaces: Y60954)				$ 12.45
13	501553		Glide,cylinder(tan)		Appelez-nous	-
14	WP500121		Pad, Felt-coin   (Replaces: 500121)			Immediately	$ 7.75
15	WP37001036		Bracket, Cylinder Glide   (Replaces: 37001036)			Immediately	$ 51.65
16	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)				$ 9.79
17	WP37001142		Filter,lint-wht   (Replaces: Y503627)			Immediately	$ 112.23
18	505528		Assy, Air Duct		Appelez-nous	-
19	503625		Sensor, Moisture				$ 22.91
21	500049		Sticker		Appelez-nous	-
22	56259R8		Label,notice Seal		Appelez-nous	-
23	Y503626		Duct, Air Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
