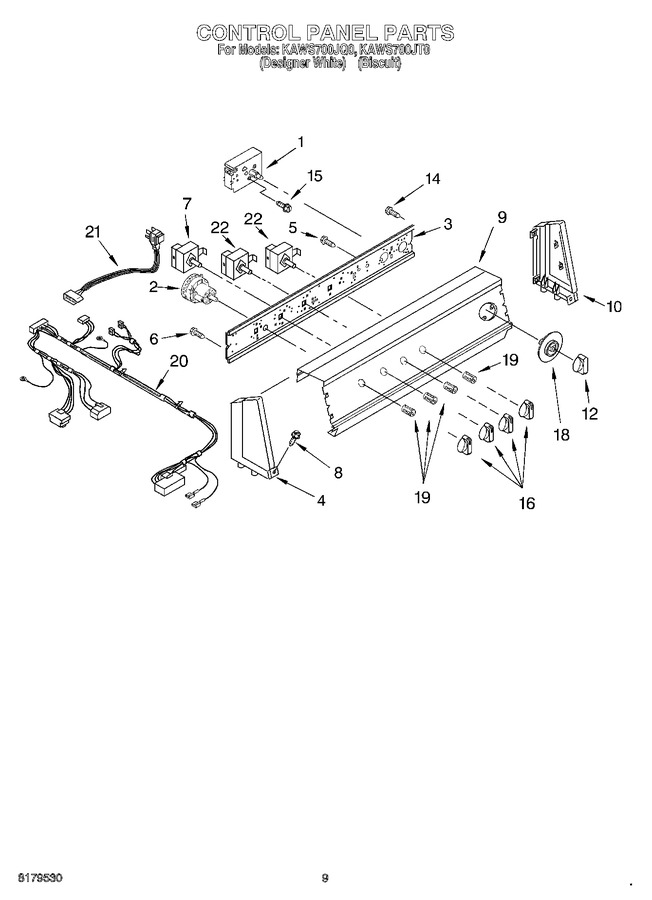

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3950736		Timer, Control 60hz. (motor Not Serviced)				$ 195.18
2	W10337780		Switch, Water Level   (Replaces: 3950421)			Immediately	$ 79.38
3	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
4	8274355		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8274353		Cap, End (l.h.) (white)		Appelez-nous	-
5	3400073		Screw		Appelez-nous	-
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	661614		Switch, Water Temperature				$ 56.07
8	WP388326		Screw   (Replaces: 388326)				$ 7.30
9	3952538		Console, Panel (biscuit)		Appelez-nous	-
9	3952537		Console, Panel (white)		Appelez-nous	-
10	8274349		Cap End (r.h.) (white)		Appelez-nous	-
10	8274351		Cap End (r.h.) (biscuit)		Appelez-nous	-
12	3952694		Knob, Timer (biscuit)		Appelez-nous	-
12	3361052		Knob, Timer (white Model)		Appelez-nous	-
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP3400064		Screw   (Replaces: 3400064)				$ 6.26
16	3949704		Knob, Control (includes No.19) (biscuit)		Appelez-nous	-
16	3949700		Knob, Control (includes No.19) (white)		Appelez-nous	-
18	3952695		Dial, Timer (biscuit)		Appelez-nous	-
18	3361174		Dial, Timer (white Model)		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
20	3952665		Harness, Wire (for Detail See Page 13 & 14)		Appelez-nous	-
21	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
22	W10851055		Switch, Rotary (2)   (Replaces: 3949188)				$ 147.65

    View Diagram in Separate Window       Print Part List
