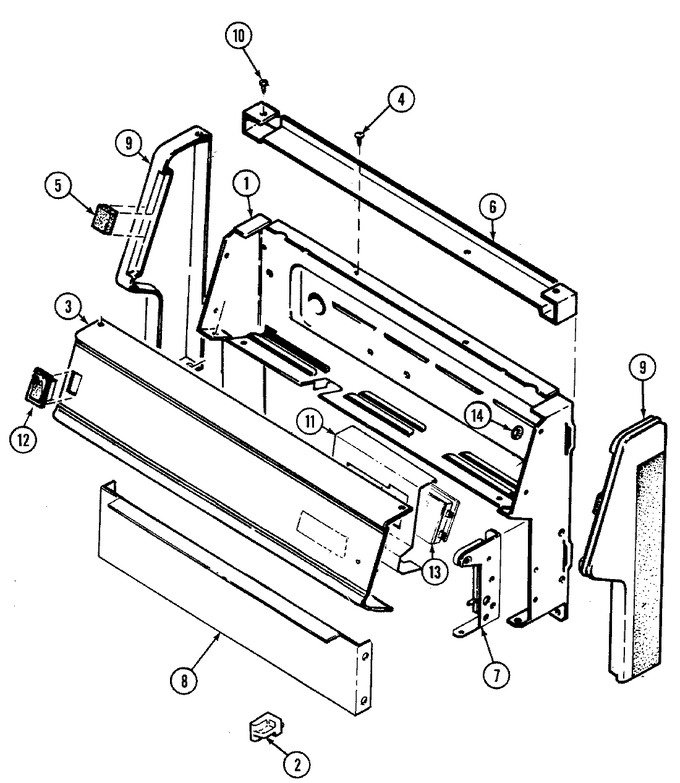

01 - Control Panel
02 - Door/drawer
03 - Gas Controls
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F097-51 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 2 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 3 | 7703P568-60 | Panel, Control (blk) | 01 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 6 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 7 | 3807F454-51 | Support, Main Top (lt) | 01 |
|
- | ||||
| 7 | 3807F453-51 | Support, Main Top (rt) | 01 |
|
- | ||||
| 8 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 9 | 7726P050-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7726P046-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 10 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 11 | 3801F331-45 | Bracket | 01 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 13 | 7602P118-60 | Clock (blk) | 01 |
|
- | ||||
| 14 | 5180D138-60 | Harness, Control Panel | 01 |
|
- | ||||
| 14 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- | ||||
| 14 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 15 | 8113P043-60 | Manual, Use & Care | 01 |
|
- |
