SELECT A DIAGRAM

02 - Body Parts


03 - Backguard


04 - Cooktop Parts


05 - Burner, Manifold And Gas Control


06 - Door Parts


07 - Broiler Drawer Parts

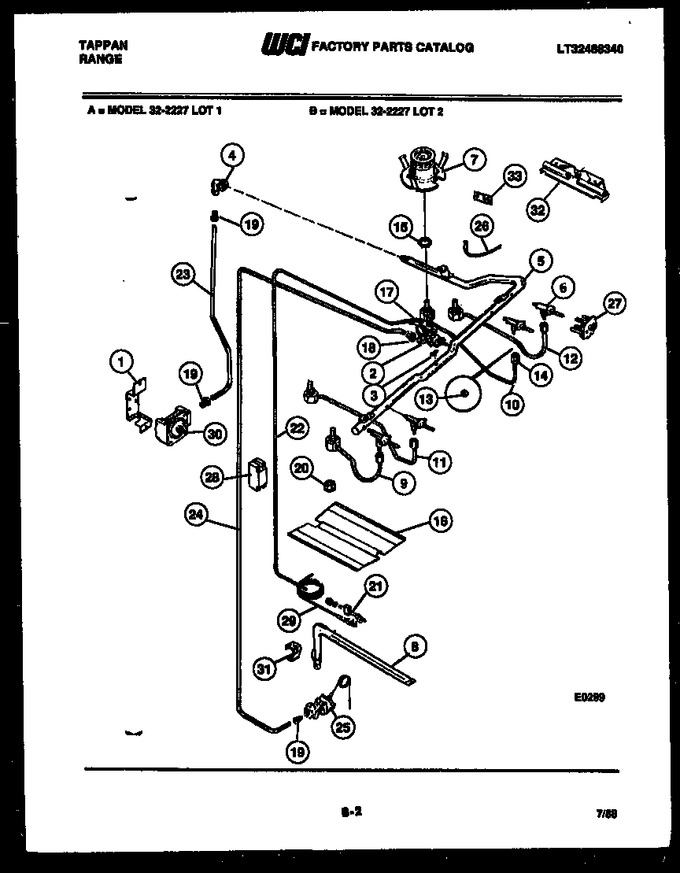

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	072T850F01		Bracket, Regulator		Appelez-nous	-
2	722T073P01		Thermostat		Appelez-nous	-
3	003T039P01		Adapter, Thermostat		Appelez-nous	-
4	215T013P01		Elbow		Appelez-nous	-
5	439T055P07		Manifold Pipe		Appelez-nous	-
6	3017542		Valve-top 2 Pos.		Appelez-nous	-
7	079T032S02		Burner, Top		Appelez-nous	-
8	3131571		Burner, Oven		Appelez-nous	-
9	079T033H01		Burner Tube (lf)		Appelez-nous	-
10	079T033H02		Burner, Tube		Appelez-nous	-
11	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
12	079T033H04		Burner, Tube, Right Front		Appelez-nous	-
13	247T074P01		Ferrule		Appelez-nous	-
14	3131148		Nut Comp		Appelez-nous	-
15	479T069P40		Nut Special		Appelez-nous	-
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	247T086P01		Fitting-loxit		Appelez-nous	-
20	479T069P03		Nut Baffle Mtd		Appelez-nous	-
21	549T037P01		Pilot		Appelez-nous	-
22	750T056P21		Tube Pilot		Appelez-nous	-
23	750T085H09		Tube Alum 3/8		Appelez-nous	-
24	750T085H13		Tube Alum. 3.8		Appelez-nous	-
25	3131405		Valve-safety		Appelez-nous	-
26	316T034P02		Igniter Electrds		Appelez-nous	-
27	3131568		Switch Ign		Appelez-nous	-
28	3131330		Igniter, Module		Appelez-nous	-
29	316T039P03		Igniter Electrd		Appelez-nous	-
30	166T013P01		Control, Regulator		Appelez-nous	-
31	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
32	136T355W03		Chan-flash Tube		Appelez-nous	-
33	612T121F01		Retainer Lgn		Appelez-nous	-
*15454	3051420		Pop Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
