02 - Cabinet, Base, Washer Top, Lid
03 - Washer Outer Tub, Inner Tub, Sub To
04 - Washer Mechanism
05 - Console
SELECT A DIAGRAM
New Model Search:

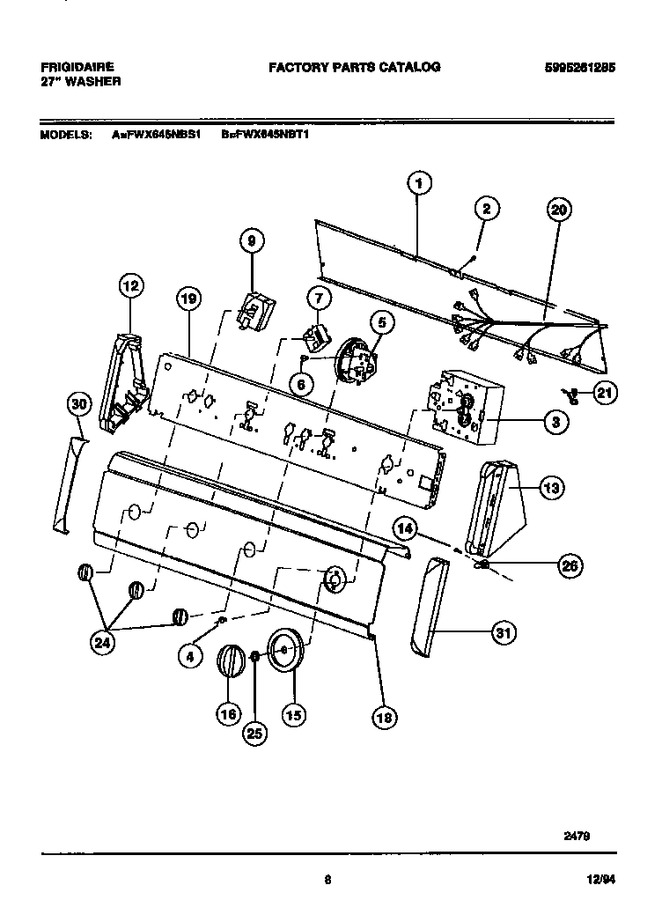

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 3 | 131238300 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 9 | 131081200 | Switch-temperature |
|
- | |||||
| 12 | 131122711 | End Cap-l.h.-white |
|
$ 58.38 | |||||
| 13 | 131122701 | End Cap-r.h.-white |
|
$ 53.29 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131140701 | Dial-white |
|
$ 38.76 | |||||
| 16 | 131140601 | Knob-timer-white |
|
$ 65.21 | |||||
| 18 | 131347000 | Panel, Control, White |
|
- | |||||
| 19 | 131157306 | Bracket, Controls |
|
- | |||||
| 20 | 131254200 | Harness |
|
- | |||||
| 21 | 131243800 | Screw - Grd - Top Panel |
|
$ 10.46 | |||||
| 24 | 131141101 | Knob-rotary-white |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| 30 | 131122611 | Cover-l.h.-white |
|
$ 42.21 | |||||
| 31 | 131122601 | Cover-r.h.-white |
|
$ 47.20 | |||||
| 21A | 5303281035 | Screw-grd-body (non-illustrated) |
|
- | |||||
| 31B | 131243200 | Switch, Rotary On/off (non-illustrated) |
|
- |
