SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission

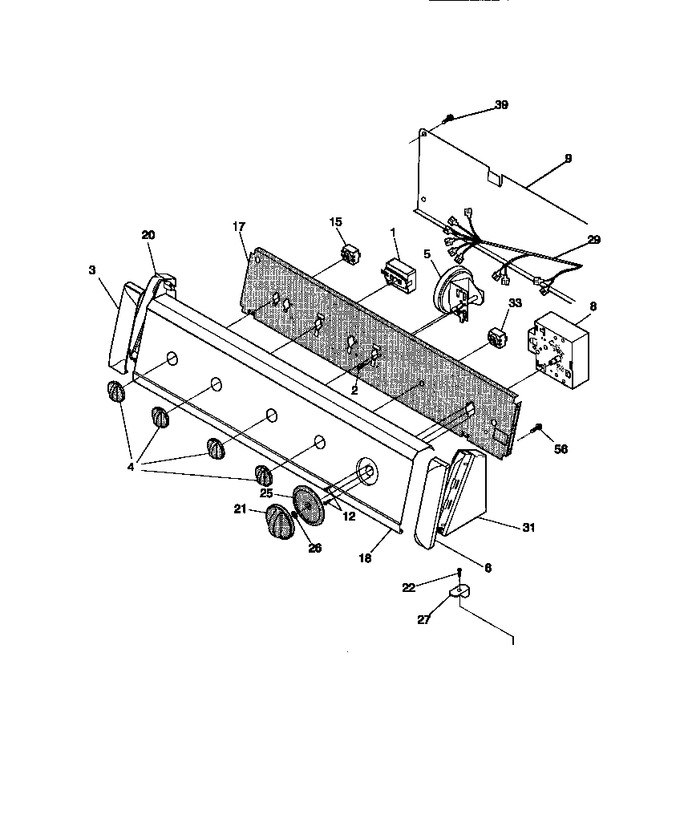

05 - Control Panel


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131157900		Switch-speed		Appelez-nous	-
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
5	131395500		Switch-pressure				$ 178.11
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131360600		Timer-washer		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer, Pth St, 8-32nc-2a X .25		Appelez-nous	-
15	131081200		Switch-temperature		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131347000		Panel-control		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131140601		Knob-timer-white				$ 65.21
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131140701		Dial-white				$ 38.76
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131342400		Harness-wiring, Washer		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
33	131243200		Switch-on/off		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
