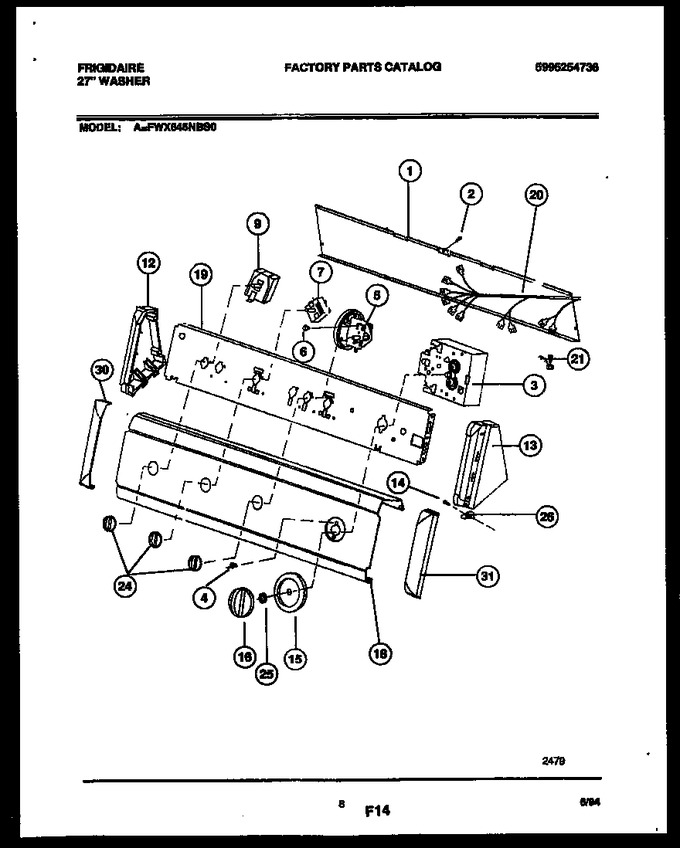

02 - Cabinet Parts
03 - Tub Detail
04 - Transmission Parts
05 - Console And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 3 | 131238300 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 7 | 131157900 | Switch-speed |
|
- | |||||
| 9 | 131081200 | Switch-temperature |
|
- | |||||
| 12 | 131122712 | End Cap Lh-almond |
|
- | |||||
| 13 | 131122702 | End Cap-rh-almond |
|
- | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131140702 | Dial-almond |
|
- | |||||
| 16 | 131140602 | Knob-timer-almond |
|
- | |||||
| 18 | 131347400 | Panel, Control, Almond |
|
- | |||||
| 19 | 131297306 | Bracket-controls |
|
- | |||||
| 20 | 131254200 | Harness |
|
- | |||||
| 21 | 131243800 | Screw - Grd - Top Panel |
|
$ 10.46 | |||||
| 24 | 131141102 | Knob-rotary-almond |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| 30 | 131122612 | Cover-l.h.-almond |
|
- | |||||
| 31 | 131122602 | Cover-r.h-almond |
|
- | |||||
| *10022 | 131243200 | Switch-rotary On/off |
|
- | |||||
| 21A | 5303281035 | Screw-grd-body (non-illustrated) |
|
- |
