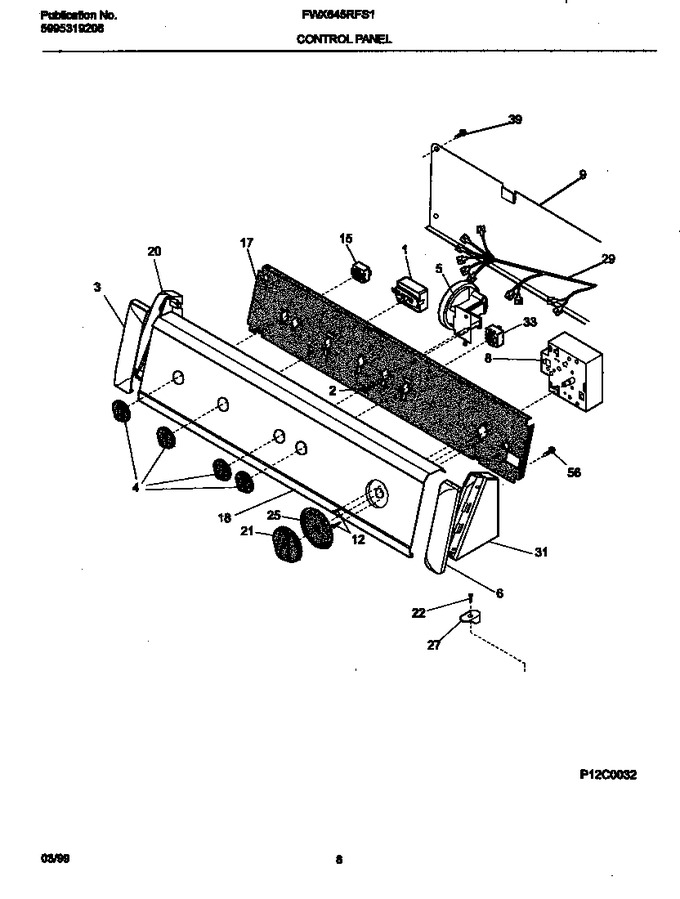

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
5	131395500		Switch-pressure				$ 178.11
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131581602		Timer		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131684900		Panel-control		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592101		Dial-timer		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131794400		Harness-washer Wiring		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
33	131243200		Switch-on/off		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*70243	131507700		Spacer Pad		Appelez-nous	-
