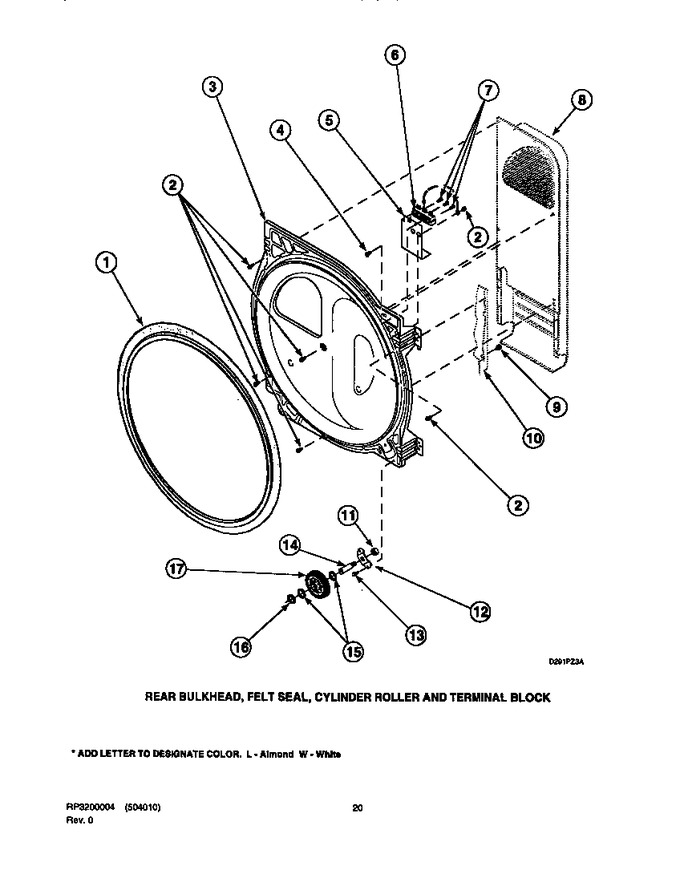

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
2	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
3	502614W		Bulkhead, Rear		Appelez-nous	-
4	D501285		Screw, No.12 X 9/16   (Replaces: 501285)				$ 2.76
5	Y504185		Shield, Terminal Block		Appelez-nous	-
6	61923P		Terminal Block		Appelez-nous	-
7	D501285		Screw, No.12 X 9/16   (Replaces: 501285)				$ 2.76
7	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
8	503607		Assembly, Heater Duct		Appelez-nous	-
9	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
10	500001P		Cabinet		Appelez-nous	-
11	56156		Nut, 3/8-16 Serrated				$ 6.95
12	WP40113601		Bracket, Cylinder Roller   (Replaces: 500062)				$ 83.99
13	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
14	WP56461		Shaft   (Replaces: 56461)				$ 85.03
15	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
16	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
17	WP37001042		Assembly, Cylinder Roller   (Replaces: 500214)			Immediately	$ 15.26
NI	22506P		Adhesive,3m-1300-5 Oz.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
