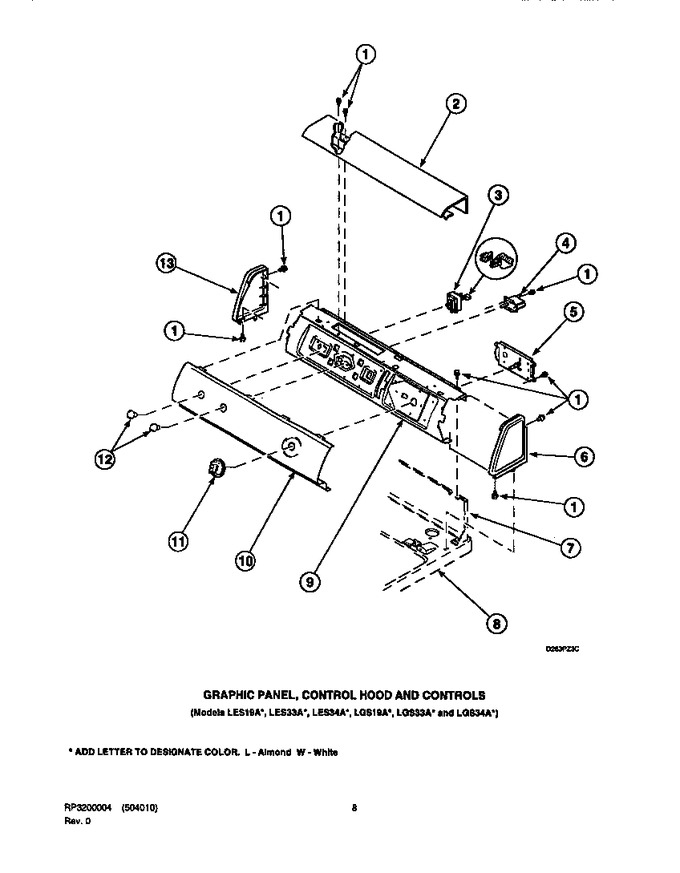

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
2	503674		Top Cover		Appelez-nous	-
3	Y503997		Switch, Fabric Selector		Appelez-nous	-
4	Y504191		Signal		Appelez-nous	-
5	503912		Use 505473p		Appelez-nous	-
6	Y504008		End Cap Right		Appelez-nous	-
7	500343		Panel,back(home Hood)		Appelez-nous	-
8	500085P		Top		Appelez-nous	-
9	503901		Panel,support Control (mech)				$ 25.75
10	Y504020		Graphic Panel		Appelez-nous	-
11	Y504002		Assy,timer Knob-white		Appelez-nous	-
12	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31
13	Y504009		End Cap Left		Appelez-nous	-
