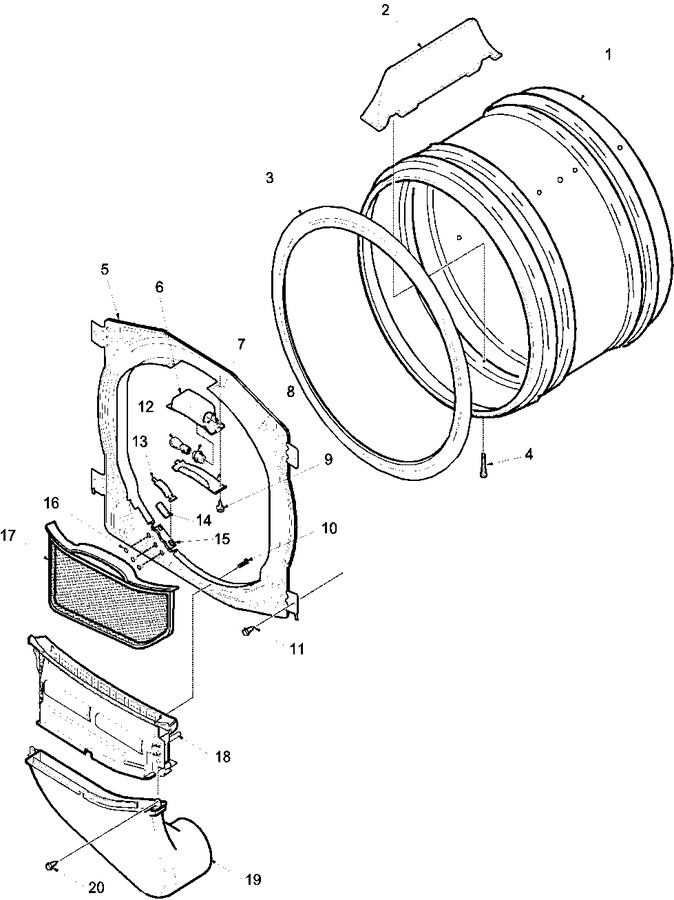

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	504467WP		Cylinder Assembly (painted)		Appelez-nous	-
2	503703		Baffle, Cylinder (wht)				$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap		Appelez-nous	-
5	503709W		Assembly, Bulkhead-front		Appelez-nous	-
6	503622		Housing, Cylinder Light		Appelez-nous	-
7	504458		Holder, Lamp		Appelez-nous	-
8	Y503623		Lens, Light		Appelez-nous	-
9	500227		Screw, No.8ab-16x7/16ph				$ 14.82
10	D500226		Screw, 8b-16x5/8 Tap   (Replaces: 500226)				$ 3.88
11	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
12	W10857122		Light, Cylinder   (Replaces: Y60954)				$ 12.45
13	Y501676		Glide, Cyclinder Green		Appelez-nous	-
14	D510189		Pad, Felt   (Replaces: 500092)				$ 4.23
15	12002090		Bracket, Cylinder Glide   (Replaces: 501554)				$ 98.33
16	504540		Rivet, Pop 3/16 Steel		Appelez-nous	-
17	WP37001142		Filter,lint-wht   (Replaces: Y503627)			Immediately	$ 112.23
18	Y504203		Assy, Upper Air Duct		Appelez-nous	-
19	Y503626		Duct, Air Lower		Appelez-nous	-
20	D501285		Screw, No.12 X 9/16   (Replaces: 501285)				$ 2.76
NI	22506P		Adhesive,3m-1300-5 Oz.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
