SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission

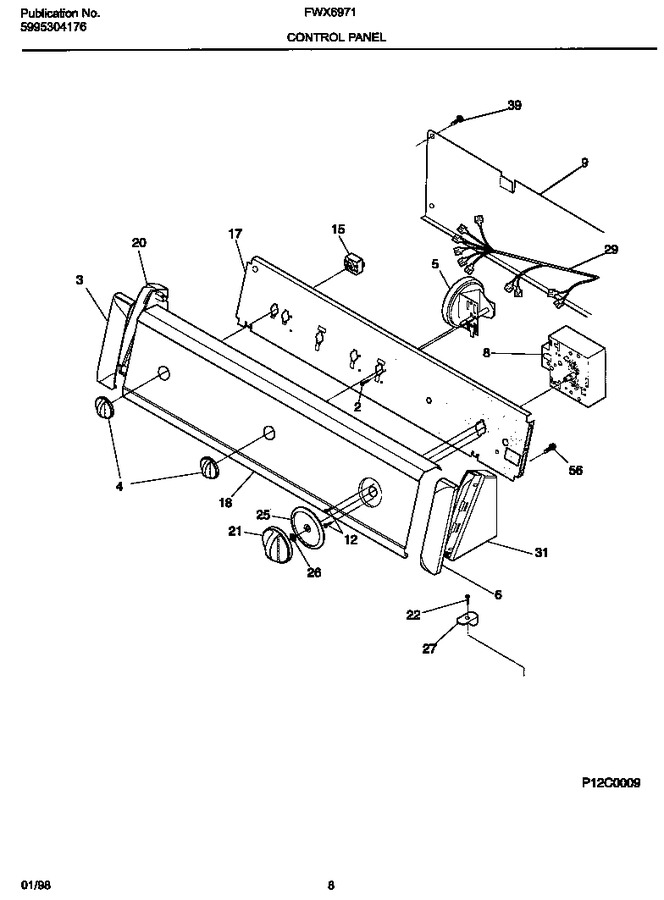

05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	073325-000		Scr/sn8-18x.375 Comb Pnhd Ab		Appelez-nous	-
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
5	131047700		Switch-pressure		Appelez-nous	-
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
8	131436900		Timer-washer		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
15	131081200		Switch-temperature		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131611500		Panel-control		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	131140600		Knob-timer,black				$ 40.61
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131140700		Dial, Black		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131653700		Harness-main		Appelez-nous	-
31	131122700		End Cap,black ,rh				$ 104.90
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
56	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
