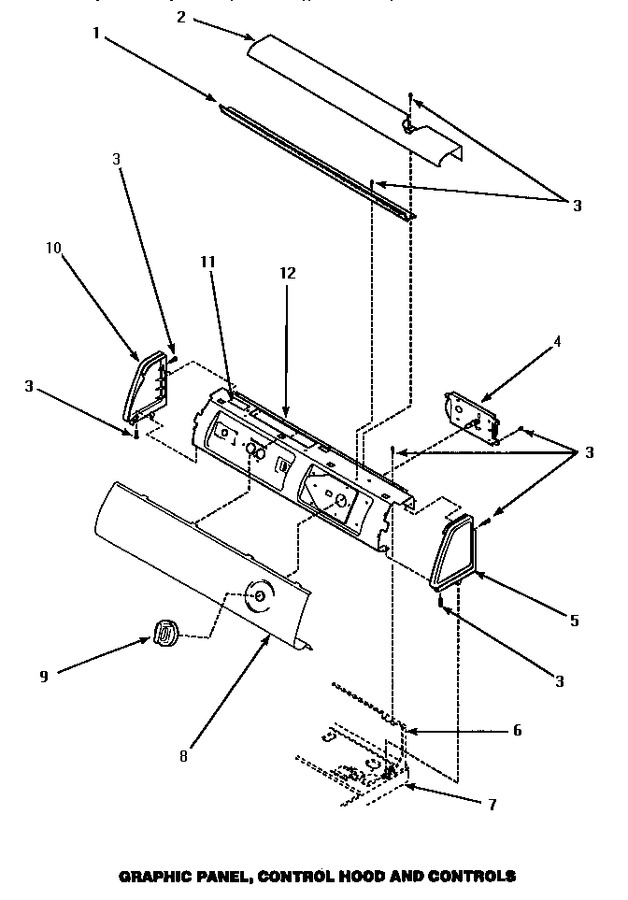

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	500305		Diffuser W/out Hole		Appelez-nous	-
2	500302		Cover,top		Appelez-nous	-
3	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
4	59420		Timer,1 Cycle		Appelez-nous	-
5	34815		Panel, End R.h. (blk)		Appelez-nous	-
6	Y00000000		See Note Control Hood Rear Panel		Appelez-nous	-
7	Y00000000		See Note Cabinet Top		Appelez-nous	-
8	501548		Panel, Graphics		Appelez-nous	-
9	DE81-05143A		Assy,timer Knob & Skir   (Replaces: 62176)				$ 142.77
10	34816		Panel, End (blk,l.h.)		Appelez-nous	-
11	24903		Sticker,disconnect Pow		Appelez-nous	-
12	500300		Bracket,control Support-mech		Appelez-nous	-
	NOTE:		Different Vendors Are Used. Although The Timers Differ In Appearance, They Arecompletely Interchangeable When Identified By The Same Part Number.		Appelez-nous	-
