SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission


05 - Control Panel

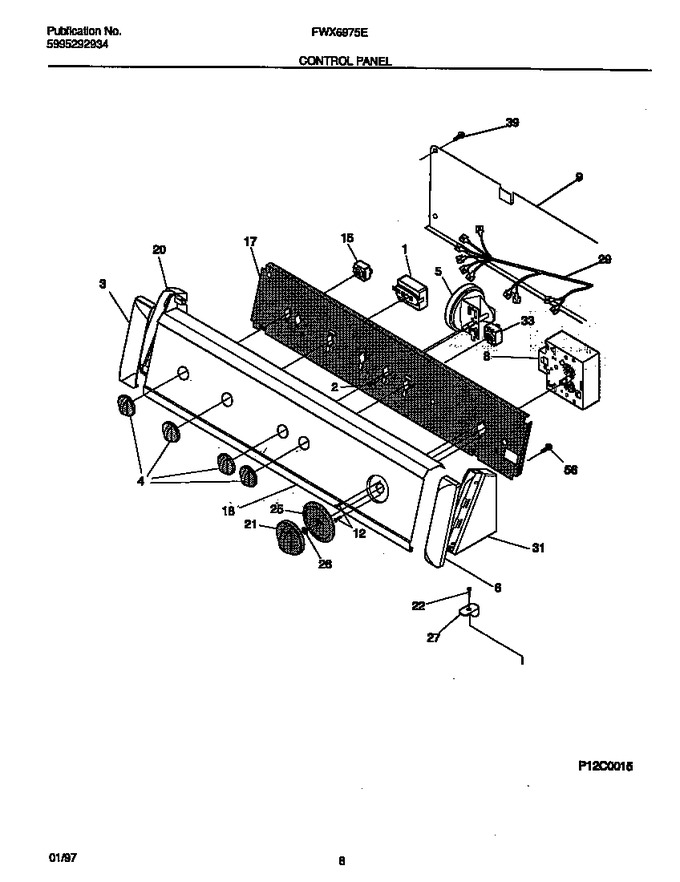

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131157900		Switch-speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
5	131395500		Switch-pressure				$ 178.11
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
8	131581600		Timer				$ 702.15
9	131141701		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer, Pth St, 8-32nc-2a X .25		Appelez-nous	-
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131630000		Panel-control		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	131592000		Knob-timer,black		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592100		Dial-timer		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131589200		Harness-main		Appelez-nous	-
31	131122700		End Cap,black ,rh				$ 104.90
33	131243200		Switch-on/off		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
