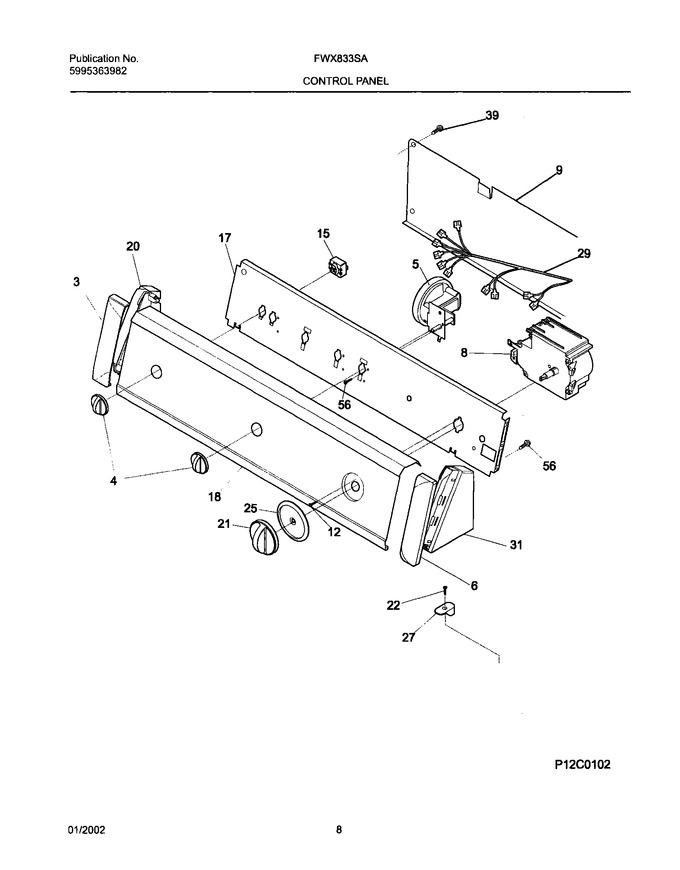

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122613		End Cap Cover-lh Bsq Ultra		Appelez-nous	-
4	131141107		Knob-rot Bsq/drk Brown		Appelez-nous	-
5	134411600		Pressure-sw 3pos-90-2.7-3/4 Hp   (Replaces: 134053800)				$ 138.92
6	131122603		End Cap Cover-rh Bsq Ultra		Appelez-nous	-
8	131758600		Timer-washer			Immediately	$ 352.01
9	134088700		Backsheet-f Console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
15	131047000		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	134119100		Trimplate Fda1jsnfb-2		Appelez-nous	-
20	131122713		End Cap Lh Bsq-ultra,20		Appelez-nous	-
21	131592004		Knob-timer Bsq		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592106		Pointer-timer Bsq/dr Brwn		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131986800		Harness P		Appelez-nous	-
31	131122703		End Cap Rh Bsq-ultra,31		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
