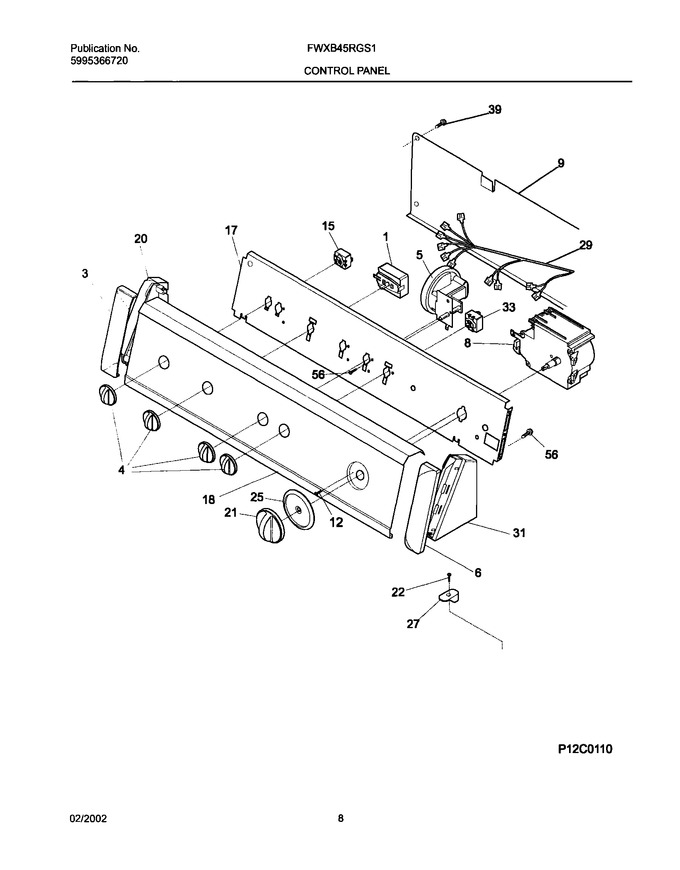

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131157900		Switch-speed		Appelez-nous	-
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
9	134088700		Backsheet-f Console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131580006		Bracket-control		Appelez-nous	-
18	134024700		Trimplate Fda1wrnf		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer White				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592105		Pntr-timer Wht/drk Gray Rf2				$ 65.05
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F15	131081200		Switch-temperature		Appelez-nous	-
F29	134129900		Harn-w-rot Sp/temp/op-emerson		Appelez-nous	-
F33	131243200		Switch-extra Rinse/speed		Appelez-nous	-
F5	131047700		Switch-pressure		Appelez-nous	-
F8	131581600		Timer				$ 702.15
NI	131507700		Spacer Pad		Appelez-nous	-
