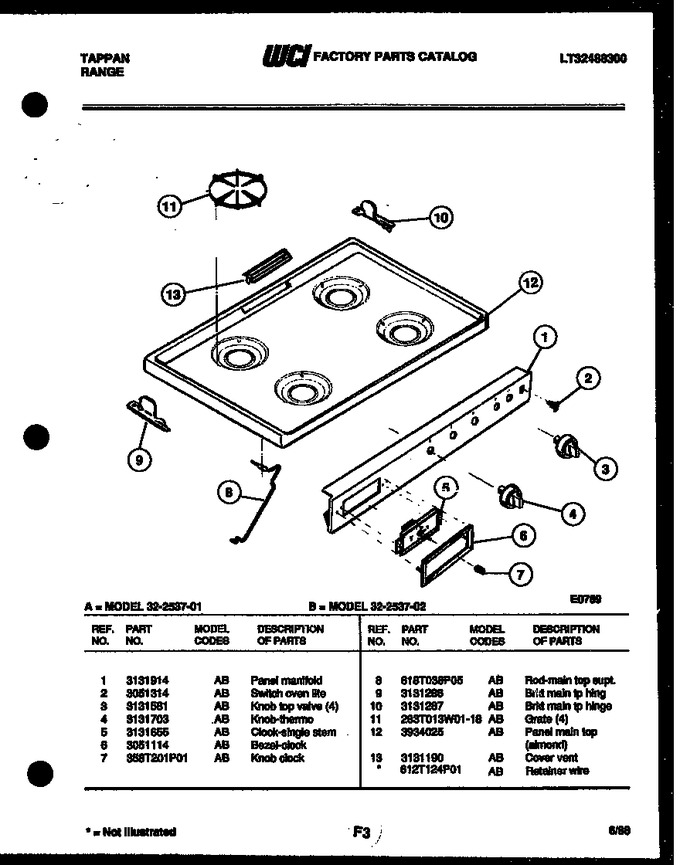

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131914		Panel, Manifold		Appelez-nous	-
2	3051314		Switch Oven Lite		Appelez-nous	-
3	3131581		Knob, Top Valve (4)		Appelez-nous	-
4	3131703		Knob-thermo		Appelez-nous	-
5	3131655		Clock, Single Stem		Appelez-nous	-
6	3051114		Bezel, Clock		Appelez-nous	-
7	358T201P01		Knob, Clock		Appelez-nous	-
8	618T038P05		Rod-main Top Supt.		Appelez-nous	-
9	3131286		Brkt Main Tp Hing		Appelez-nous	-
10	3131287		Brkt Main Tp Hinge		Appelez-nous	-
11	283T013W01-18		Grate (4)		Appelez-nous	-
12	3934025		Panel, Main Top (almond)		Appelez-nous	-
13	3131190		Cover-vent		Appelez-nous	-
*95106	612T124P01		Retainer - Wire		Appelez-nous	-
