SELECT A DIAGRAM

01 - Top And Cabinet


02 - Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base

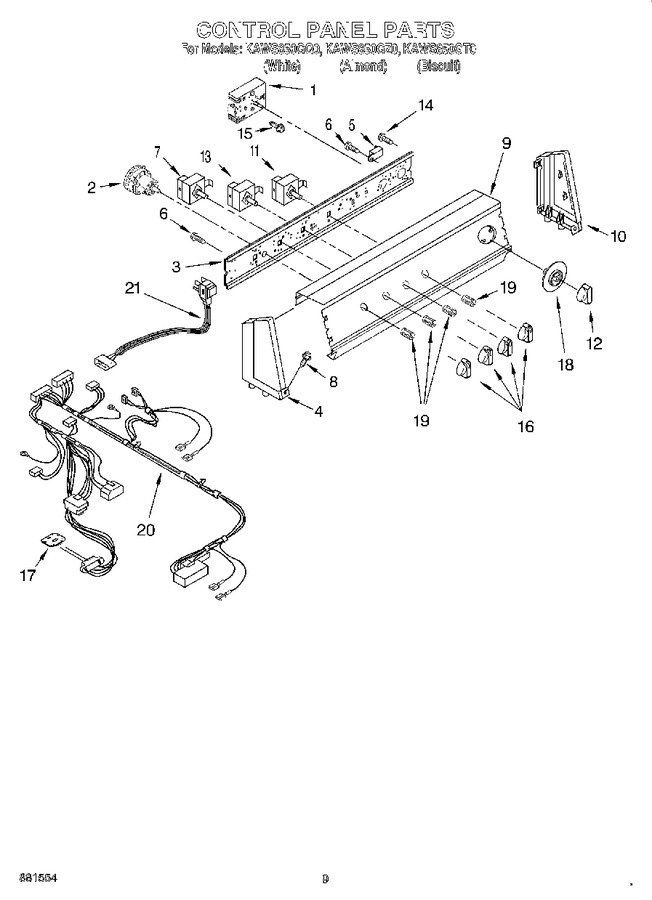

06 - Control Panel


07 - Miscellaneous, Lit/optional


08 - Gearcase


09 - Brake And Drive Tube


10 - Wiring Harness


11 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3952518		Timer, Control 60hz. (motor Not Serviced)		Appelez-nous	-
2	W10339326		Switch, Water Level   (Replaces: 3950420)			Immediately	$ 79.17
3	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
4	3360572		Cap, End (l.h.) (almond)		Appelez-nous	-
4	3360574		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	3360570		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	3950354		Switch, Water Temperature		Appelez-nous	-
8	WP388326		Screw   (Replaces: 388326)				$ 7.30
9	3952533		Console, Panel (biscuit)		Appelez-nous	-
9	3952532		Console, Panel (almond)		Appelez-nous	-
9	3952531		Console, Panel (white)		Appelez-nous	-
10	3360567		Cap End (r.h.) (white)		Appelez-nous	-
10	3360573		Cap, End (r.h.) (biscuit)		Appelez-nous	-
10	3360569		Cap End (r.h.) (almond)		Appelez-nous	-
11	3952578		Switch, Rotary				$ 93.94
12	3361053		Knob, Timer (almond Model)		Appelez-nous	-
12	3361052		Knob, Timer (white Model)		Appelez-nous	-
12	3952694		Knob, Timer (biscuit)		Appelez-nous	-
13	W10168264		Switch, Rotary   (Replaces: 3361228)				$ 113.71
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3949700		Knob, Control (white)		Appelez-nous	-
16	3949704		Knob, Control (biscuit)		Appelez-nous	-
16	3949701		Knob, Control (almond Model)		Appelez-nous	-
17	3407125		Control, Etc		Appelez-nous	-
18	3361174		Dial, Timer (white Model)		Appelez-nous	-
18	3952695		Dial, Timer (biscuit)		Appelez-nous	-
18	3361175		Dial, Timer (almond Model)		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
20	3952690		Harness, Wire		Appelez-nous	-
21	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46

    View Diagram in Separate Window       Print Part List
