New Model Search:

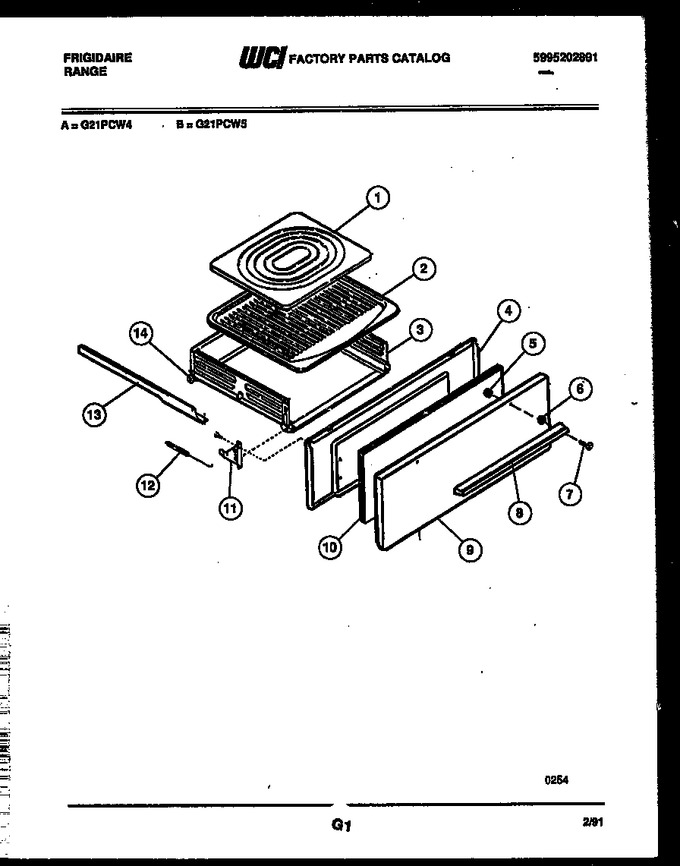

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017712 | Insert-broiler |
|
- | |||||
| 2 | 5303016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer-broilr |
|
- | |||||
| 4 | 3018698 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3051038 | Nut (2) |
|
- | |||||
| 6 | 5303051041 | Spacer (2) |
|
- | |||||
| 7 | 5303051043 | Screws |
|
- | |||||
| 8 | 5308008085 | Handle |
|
- | |||||
| 9 | 3131027 | Panel-almond |
|
- | |||||
| 9 | 3205529 | Panel-white |
|
- | |||||
| 10 | 3131025 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge - Rh |
|
- | |||||
| 12 | 5303131030 | Spring |
|
- | |||||
| 13 | 5303051055 | Track-drawer Rh |
|
$ 56.60 | |||||
| 14 | 5303051057 | Rollers (2) |
|
- | |||||
| 11A | 5303131029 | Hinge - Lh |
|
- | |||||
| 13A | 5303051056 | Track-drawer Lh |
|
$ 78.44 |
