SELECT A DIAGRAM

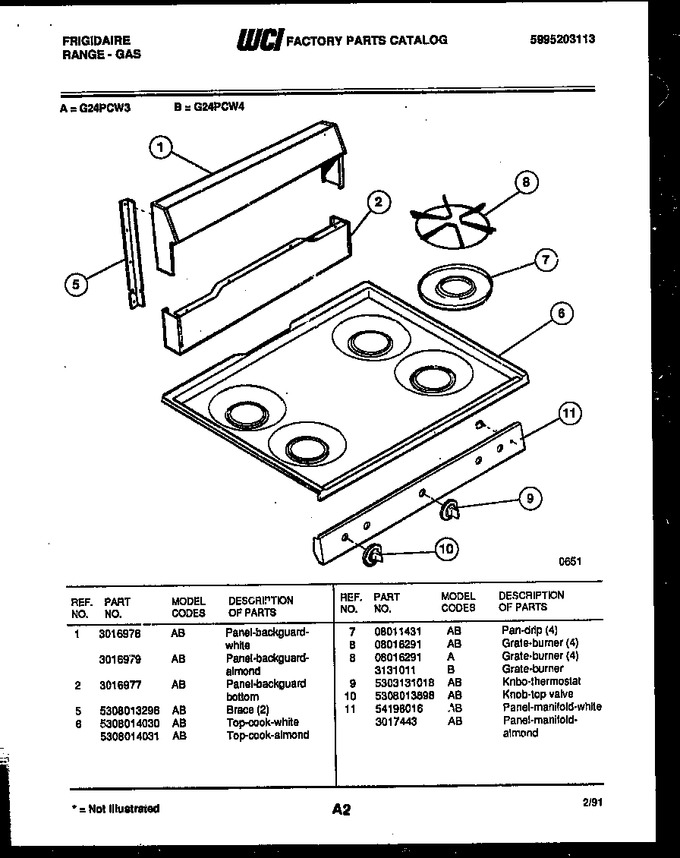

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Broiler Drawer Parts
05 - Body Parts
06 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016979 | Panel-backguard-almond |
|
- | |||||
| 2 | 3016977 | Panel-backguard Bottom |
|
- | |||||
| 5 | 5308013296 | Brace (2) |
|
- | |||||
| 6 | 5308014031 | Top-cook-almond |
|
- | |||||
| 7 | 08011431 | Pan - Drip (4) |
|
- | |||||
| 8 | 08016291 | Grate-burner (4) |
|
- | |||||
| 8 | 3131011 | Grate-burner |
|
- | |||||
| 9 | 5303131018 | Knbo-thermostat |
|
$ 40.95 | |||||
| 10 | 5308013898 | Knob-top Valve |
|
$ 69.30 | |||||
| 11 | 3017443 | Panel-manifold-almond |
|
- |
