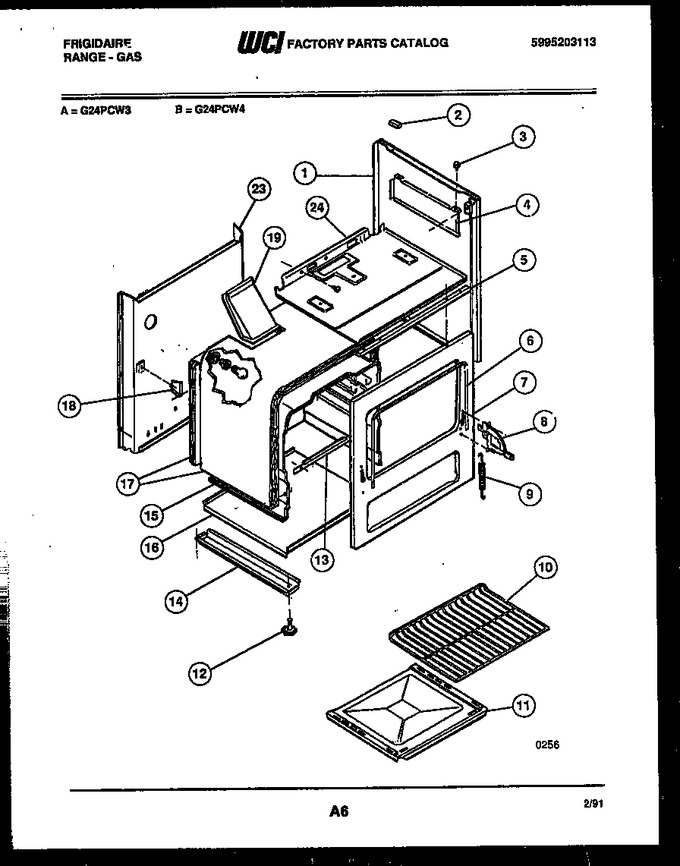

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Broiler Drawer Parts
05 - Body Parts
06 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014019 | Panel-side-almond (2) |
|
- | |||||
| 1 | 5303051061 | Panel-side-white (2) |
|
- | |||||
| 2 | 08068052 | Grommet-main Top |
|
- | |||||
| 3 | 3051063 | Grommet-top Front (2) |
|
- | |||||
| 4 | 5303131053 | Shield-heat Rh |
|
- | |||||
| 5 | 3016950 | Support-cont Panel |
|
- | |||||
| 6 | 5308013916 | Seal-door |
|
- | |||||
| 7 | 3017601 | Frame-front |
|
- | |||||
| 8 | 5303204672 | Hinge-oven Door Lh |
|
- | |||||
| 8 | 5303204670 | Hinge-oven Door Rh |
|
- | |||||
| 9 | 5303051079 | Spring-door (2) |
|
- | |||||
| 10 | 5303016128 | Rack (2) |
|
- | |||||
| 11 | 3018815 | Panel-bottom |
|
- | |||||
| 12 | 08068019 | Screw - Leveling (4) |
|
- | |||||
| 13 | 3131038 | Support-oven Bottom |
|
- | |||||
| 14 | 3051081 | Rail - Base (2) |
|
- | |||||
| 15 | 3018818 | Liner-top |
|
- | |||||
| 15 | 3018284 | Liner - Side Rh |
|
- | |||||
| 15 | 3018817 | Liner-back |
|
- | |||||
| 16 | 3017748 | Bottom-oven |
|
- | |||||
| 17 | 3017171 | Insulation - Wrap |
|
- | |||||
| 18 | 08008042 | Support - Rear (2) |
|
- | |||||
| 19 | 3017173 | Vent - Flue |
|
- | |||||
| 23 | 3017449 | Back-main |
|
- | |||||
| 24 | 3017450 | Burner - Box Bottom |
|
- | |||||
| *13654 | 3934059 | Anti-tip Brkt |
|
- | |||||
| 15A | 3018285 | Liner - Side Lh |
|
- | |||||
| 17A | 3917172 | Insulation-back |
|
- | |||||
| 4A | 5303131054 | Shield-heat Lh |
|
- |
