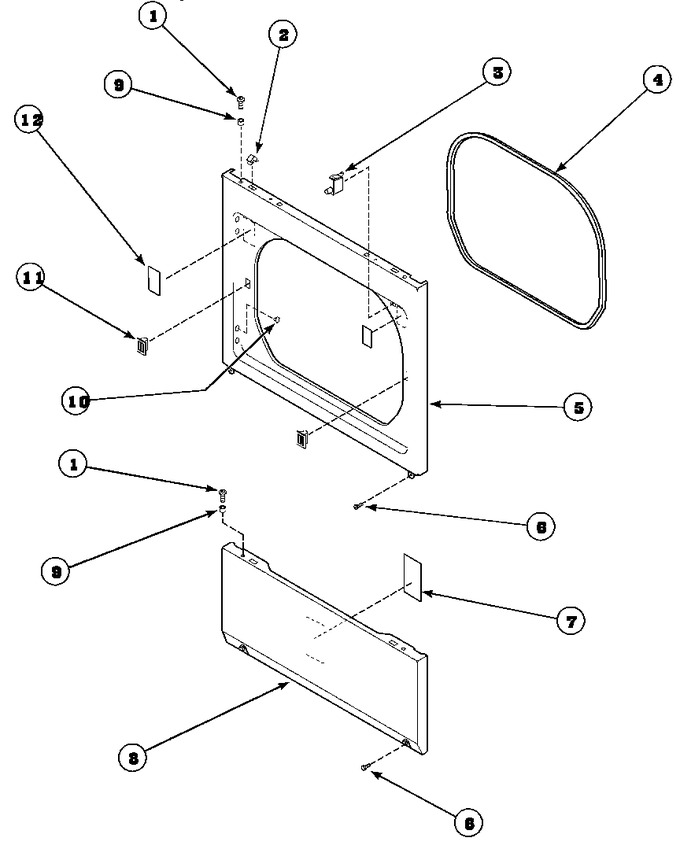

14 - Lower Access Panel, Front Panel And Seal


15 - Motor Conn Block, Term & Tools


16 - Motor, Exhaust Fan And Belt


17 - Page 21


18 - Power Cords


19 - Power Cords


20 - Rear Blkhd/felt Seal/cyl Roller & Term


21 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
2	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
3	W10169313		Door Switch   (Replaces: Y62872)			Immediately	$ 29.18
4	500034		Seal,front Panel		Appelez-nous	-
5	500033		Front Panel		Appelez-nous	-
6	WP27001200		Screw   (Replaces: 33562)				$ 6.91
7	500670		Sticker Ng Or Mixed Ga		Appelez-nous	-
8	500044		Lower Access Panel		Appelez-nous	-
9	56079		Locater, Panel			Immediately	$ 6.95
10	500227		Screw, No.8ab-16x7/16ph				$ 14.82
11	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
12	500281		Sticker		Appelez-nous	-
