New Model Search:

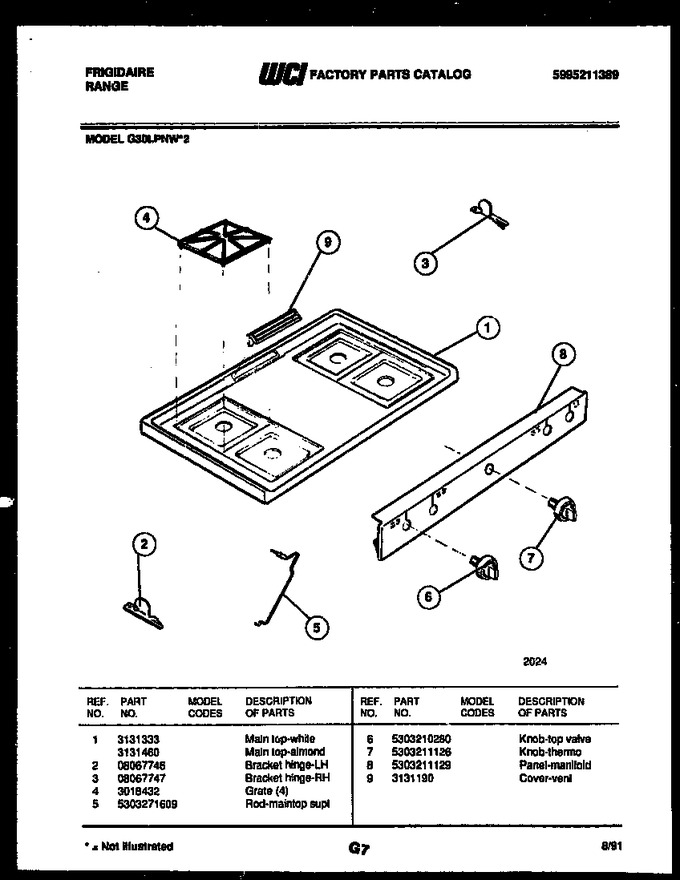

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131460 | Main Top (almond) |
|
- | |||||
| 2 | 08067746 | Bracket-hinge Lh |
|
- | |||||
| 3 | 08067747 | Bracket-hinge Rh |
|
- | |||||
| 4 | 3018432 | Grate (4) |
|
- | |||||
| 5 | 5303271609 | Rod - Maintop Supt |
|
- | |||||
| 6 | 5303210280 | Knob, Top Valve |
|
- | |||||
| 7 | 5303211126 | Knob - Thermo. |
|
- | |||||
| 8 | 5303211129 | Panel - Manifold |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- |
