Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131914 Panel, Manifold Appelez-nous -
2 3051314 Switch, Oven Light Appelez-nous -
3 3131581 Knob, Top Valve (4) Appelez-nous -
4 3131703 Knob-thermostat Appelez-nous -
5 3131655 Clock, Single Stem Appelez-nous -
6 3131336 Bezel-clock Appelez-nous -
7 3131472 Knob-clock Appelez-nous -
8 3013818 Rod, Main Top Support Appelez-nous -
9 3011558 Bracket, Main Top Hinge Lh Appelez-nous -
10 3011559 Bracket, Main Top Hinge Rh Appelez-nous -
11 3012700 Grate (4) Appelez-nous -
12 3934025 Panel-main Top (almd) Appelez-nous -
13 3131190 Cover-vent Appelez-nous -
*21259 612T124P01 Wire-retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

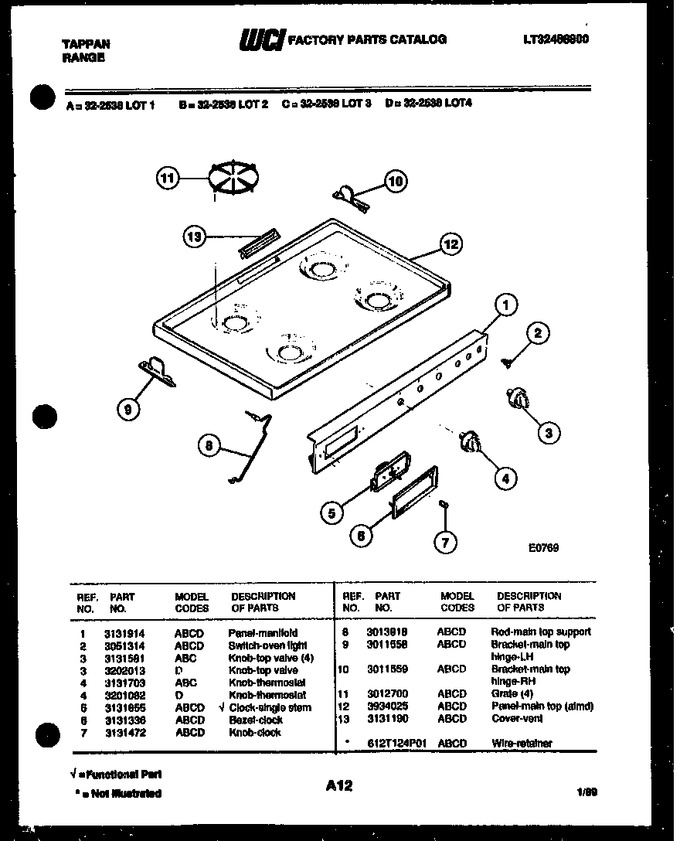

Diagram for 32-2538-23-03
