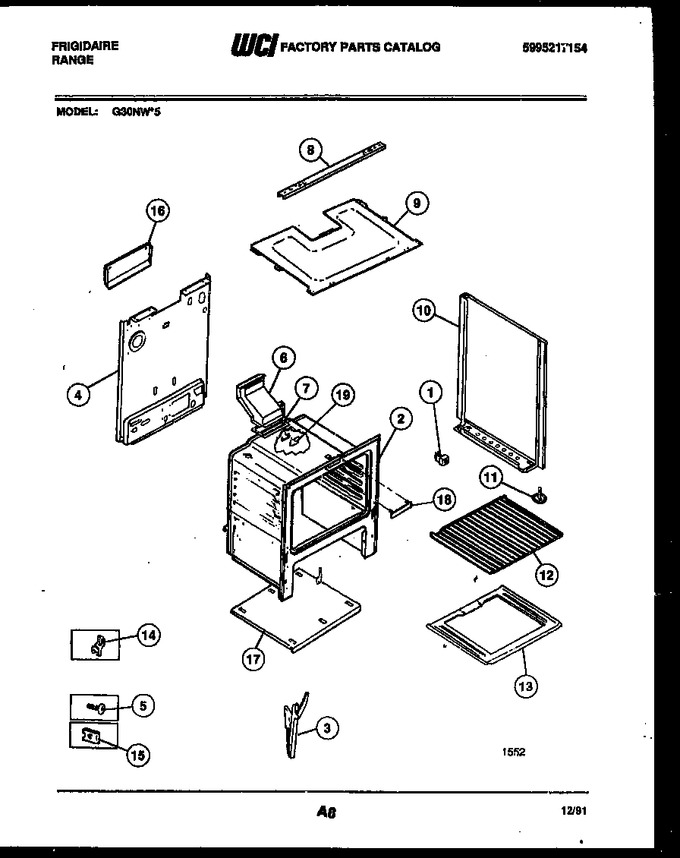

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	31600700		Channel - Door Hinge		Appelez-nous	-
4	3203082		Back-main		Appelez-nous	-
5	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
6	3131909		Flue		Appelez-nous	-
7	08067965		Gasket-flue		Appelez-nous	-
8	3203441		Channel-burner Supt		Appelez-nous	-
9	3204962		Burner Box		Appelez-nous	-
10	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
10	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
11	5303203397		Screw, Leveler (4)				$ 14.49
12	5303131973		Rack, Oven (2)		Appelez-nous	-
13	5303212540		Bottom, Oven		Appelez-nous	-
14	08010556		Clip - Thermo Bulb		Appelez-nous	-
15	3203010		Fastener, U Type   (Replaces: 5303012323)				$ 14.89
16	3131191		Cover, Flue		Appelez-nous	-
17	3131180		Base, Broil		Appelez-nous	-
18	5303015372		Cover, Front Main		Appelez-nous	-
19	3018607		Cover Plate				$ 10.50
*57385	3131660		Shield, Rear Wall		Appelez-nous	-
*57385	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
*57385	08067961		Fastener-power Cord		Appelez-nous	-
*57385	3131244		Cover, Power Cord		Appelez-nous	-
*57385	3131192		Cover-rear Wall		Appelez-nous	-
*57385	19100180225		Diagram, Wiring (not For Purchase)		Appelez-nous	-
13A	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
13B	3017142		Insulation, Wrap (non-illustrated)				$ 193.50
16A	3014226		Supt, Oven Bottom (non-illustrated)		Appelez-nous	-
18A	3934056		Anti Tip, Brackets (non-illustrated)		Appelez-nous	-
18B	3202799		Shield-flue, (non-illustrated)		Appelez-nous	-
