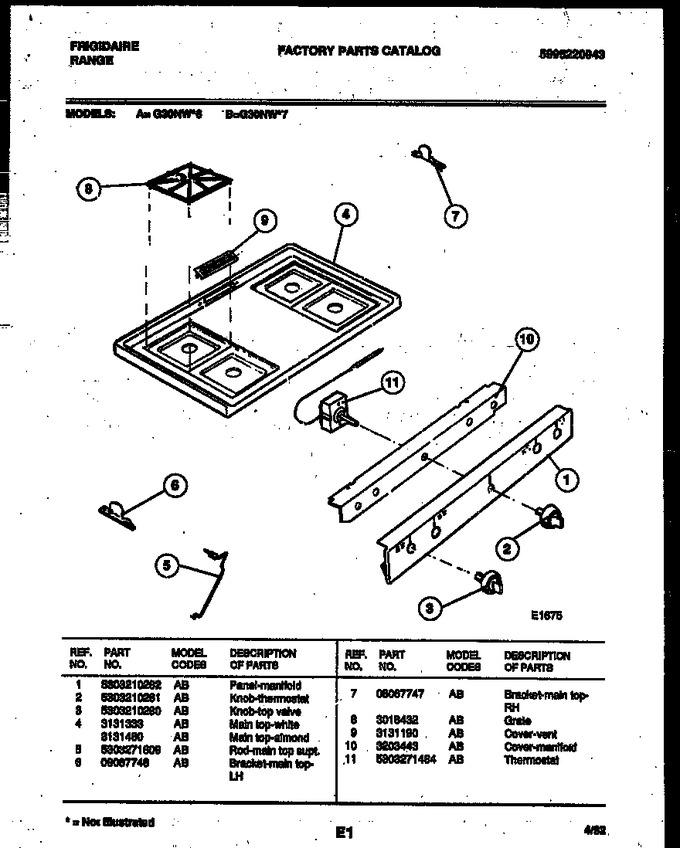

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210282 | Panel, Manifold |
|
- | |||||
| 2 | 5303210281 | Knob, Thermostat |
|
- | |||||
| 3 | 5303210280 | Knob, Top Valve |
|
- | |||||
| 4 | 3131460 | Main Top (almond) |
|
- | |||||
| 5 | 5303271609 | Rod - Maintop Supt |
|
- | |||||
| 6 | 08067746 | Bracket, Main Top, Lh |
|
- | |||||
| 7 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 8 | 3018432 | Grate |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- | |||||
| 10 | 3203443 | Cover-manifold |
|
- | |||||
| 11 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 |
