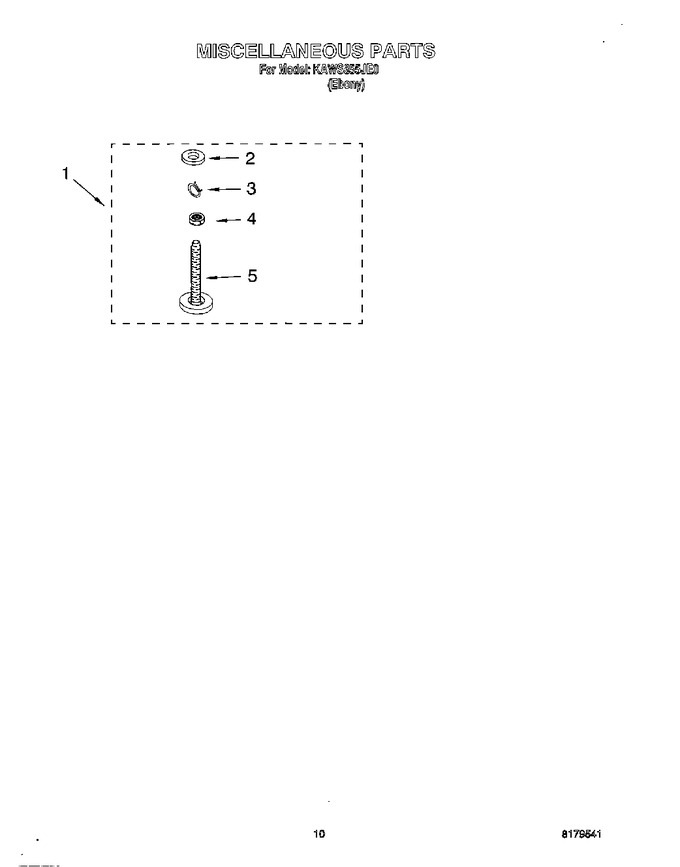

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3976259 | Miscellaneous Parts Bag |
|
- | |||||
| 2 | WP16123 | Washer, Inlet Hose (1-1/16 X 5/8) (4) (Replaces: 16123) |
|
$ 6.93 | |||||
| 3 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 4 | WP3359452 | Nut, Lock (3/8-16) (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 5 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 5 | 367031 | Drain Protector |
|
- | |||||
| 5 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 77.48 | |||||
| 5 | 76660 | Siphon Break Kit (Replaces: 285320) |
|
Immediately | $ 119.93 | ||||
| 5 | WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
$ 93.95 | |||||
| 5 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 5 | WPW10001130 | Foot, Front (2) (Replaces: 389102) |
|
Immediately | $ 7.02 | ||||
| 5 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 5 | 786032 | Ebony (uncut) |
|
- | |||||
| 5 | 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 82.45 | ||||
| 5 | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 | |||||
| 5 | 3348675 | Shipping Kit |
|
- |
