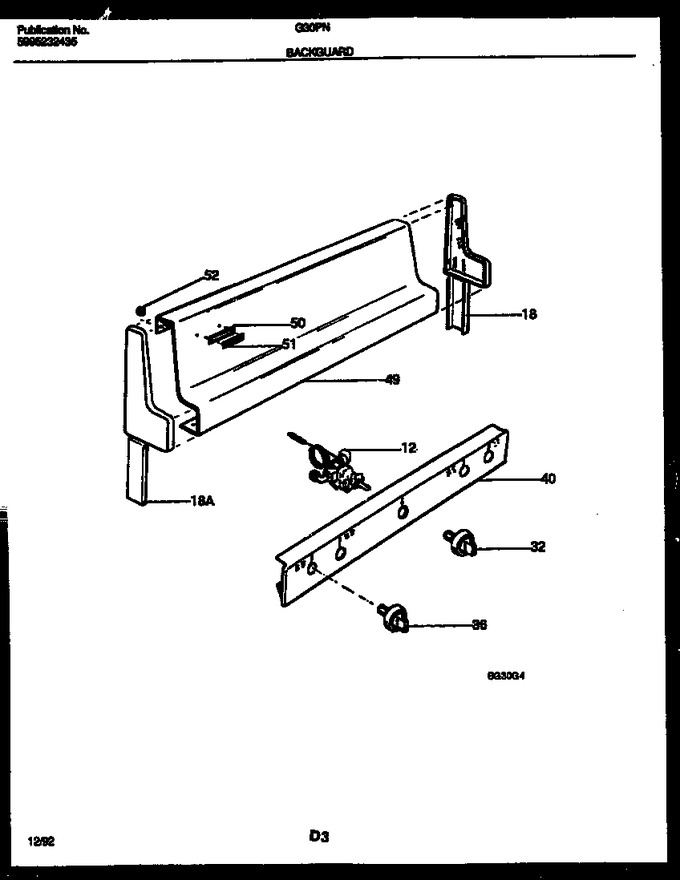

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5303935004 | Thermostat-oven, W/ Screws |
|
- | |||||
| 18 | 3202802 | Cap-end, Black, Rh |
|
- | |||||
| 32 | 5303281924 | Knob - Thermostat |
|
- | |||||
| 36 | 5303210280 | Knob, Top Valve (4) |
|
- | |||||
| 40 | 5303211129 | Panel - Manifold |
|
- | |||||
| 49 | 3051198 | Panel-backguard, Almond |
|
- | |||||
| 50 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 51 | 5303210279 | Nameplate, Frig |
|
- | |||||
| 52 | 5303131215 | Nut, Twist-on, (2) |
|
- | |||||
| 18A | 3202801 | Cap-end, Black, Lh |
|
- |
