02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts

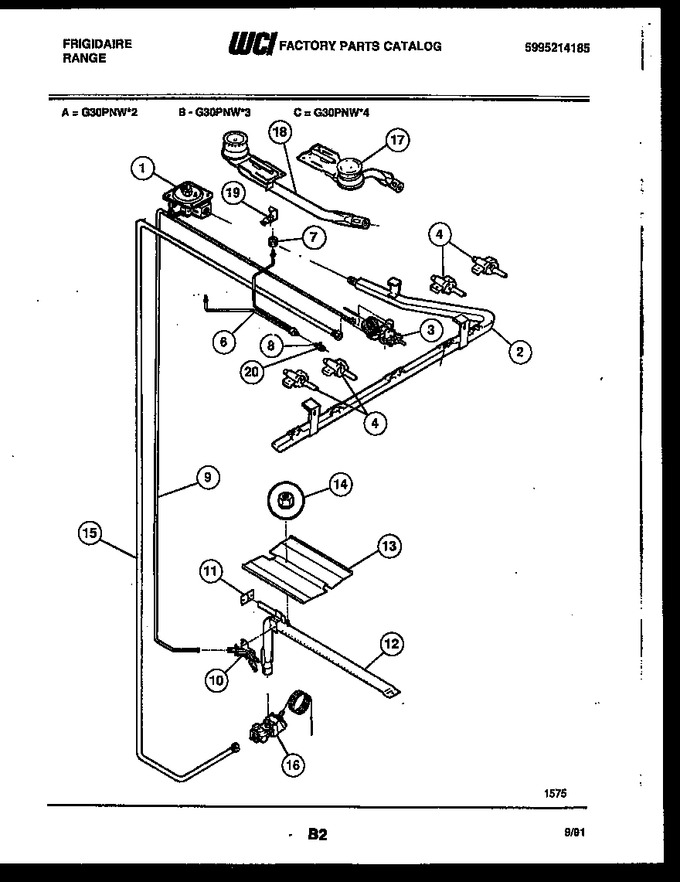

06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303016997 | Control-regulator |
|
- | |||||
| 2 | 5303280588 | Manifold-pipe |
|
- | |||||
| 3 | 5303280591 | Thermostat |
|
- | |||||
| 4 | 5303280578 | Valve-top 2 Pos (4) |
|
- | |||||
| 6 | 5303211133 | Tube-top Pilot-dual |
|
$ 88.20 | |||||
| 7 | 5303201275 | Cap - To Pilot |
|
- | |||||
| 8 | 3201276 | Nut-compression |
|
- | |||||
| 9 | 3203398 | Tube - Alum Thermo |
|
- | |||||
| 10 | 5303280589 | Pilot,oven |
|
$ 107.89 | |||||
| 11 | 3018603 | Bracket-oven Burner |
|
- | |||||
| 12 | 5303280585 | Burner-oven |
|
- | |||||
| 13 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 14 | 154079601 | Nut-baffle (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 15 | 5303280592 | Tube - Alum Thermo / Safety Valve W/ Fit |
|
- | |||||
| 16 | 5303280593 | Valve,safety |
|
$ 405.51 | |||||
| 17 | 3204958 | Burner, Top Front (2) |
|
- | |||||
| 18 | 3204960 | Burner, Top Rear (2) |
|
- | |||||
| 19 | 3202798 | Shield-pilot (2) |
|
$ 55.18 | |||||
| 20 | 5303201277 | Ferrule |
|
- | |||||
| *54622 | 5303280590 | Bolt-thermo Mtg (2) |
|
- | |||||
| 4B | 5303269845 | Screw-valves (4) (non-illustrated) |
|
- |
