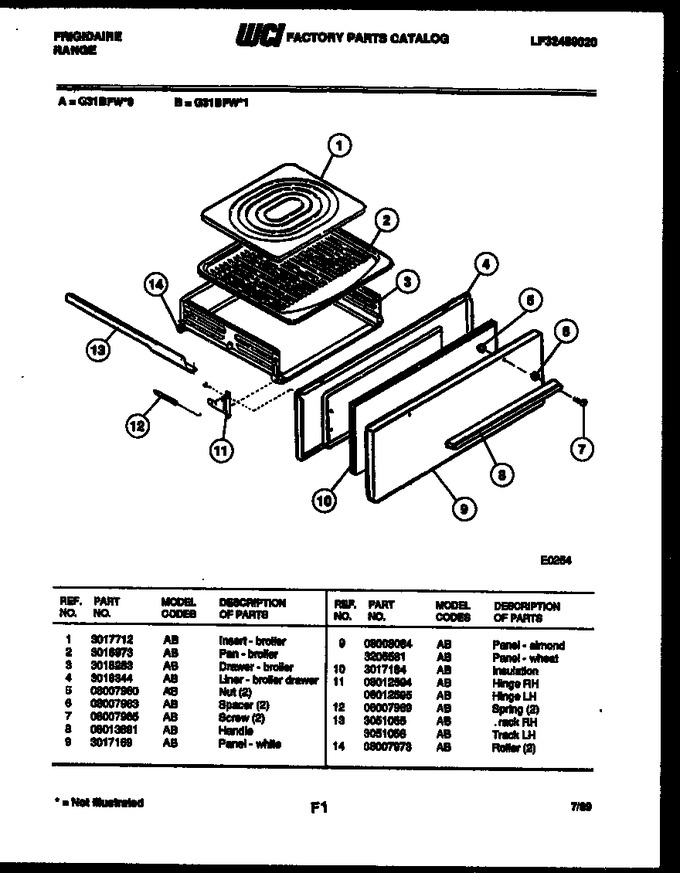

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017712 | Insert-broiler |
|
- | |||||
| 2 | 3016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018344 | Liner - Broiler Drawer |
|
- | |||||
| 5 | 08007960 | Nut (2) |
|
- | |||||
| 6 | 08007963 | Spacer (2) |
|
- | |||||
| 7 | 08007965 | Screw (2) |
|
- | |||||
| 8 | 08013881 | Handle |
|
- | |||||
| 9 | 3205581 | Panel - Wheat |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 08012594 | Hinge Rh |
|
- | |||||
| 12 | 08007969 | Spring (2) |
|
- | |||||
| 13 | 3051055 | Track Rh |
|
- | |||||
| 14 | 08007973 | Roller (2) |
|
- | |||||
| 11A | 08012595 | Hinge Lh |
|
- | |||||
| 13A | 3051056 | Track Lh |
|
- |
