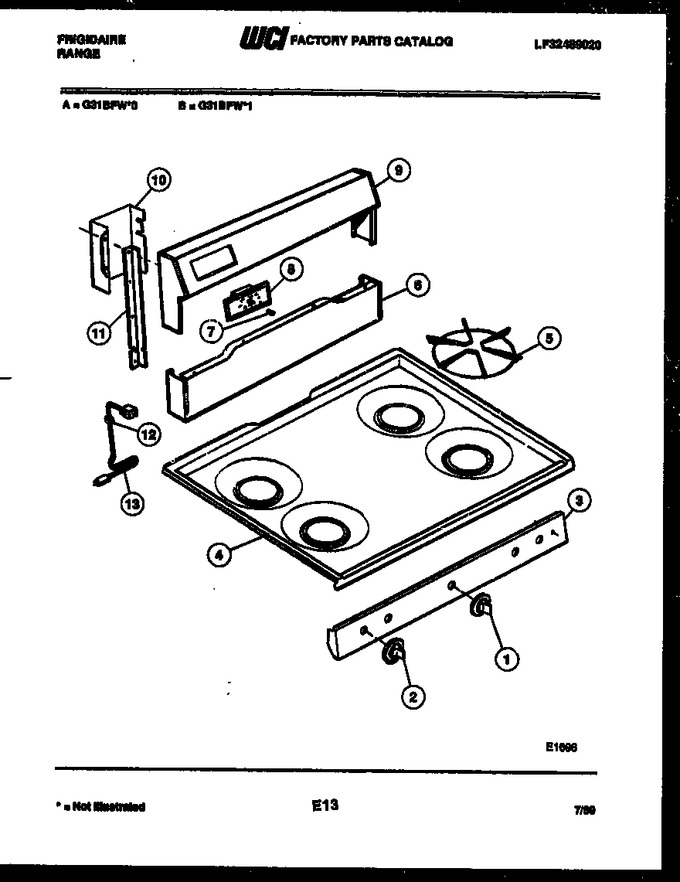

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131019 | Knob - Thermostat |
|
- | |||||
| 2 | 08013898 | Knob - Top Burner |
|
- | |||||
| 3 | 3205554 | Pnl - Manifold (wheat) |
|
- | |||||
| 4 | A76093003 | Main Top (wheat) |
|
- | |||||
| 5 | 3009309 | Grate (4) |
|
- | |||||
| 6 | 3131740 | Panel - Bottom |
|
- | |||||
| 7 | 08007902 | Knob - Clock |
|
- | |||||
| 8 | 3051012 | Clock |
|
- | |||||
| 9 | 3205564 | Backguard (wheat) |
|
- | |||||
| 10 | 3051014 | Cover - Clock |
|
- | |||||
| 11 | 08013296 | Brace (2) |
|
- | |||||
| 12 | 08008255 | Strain - Relief |
|
- | |||||
| 13 | 3015249 | Cord - Power |
|
- |
