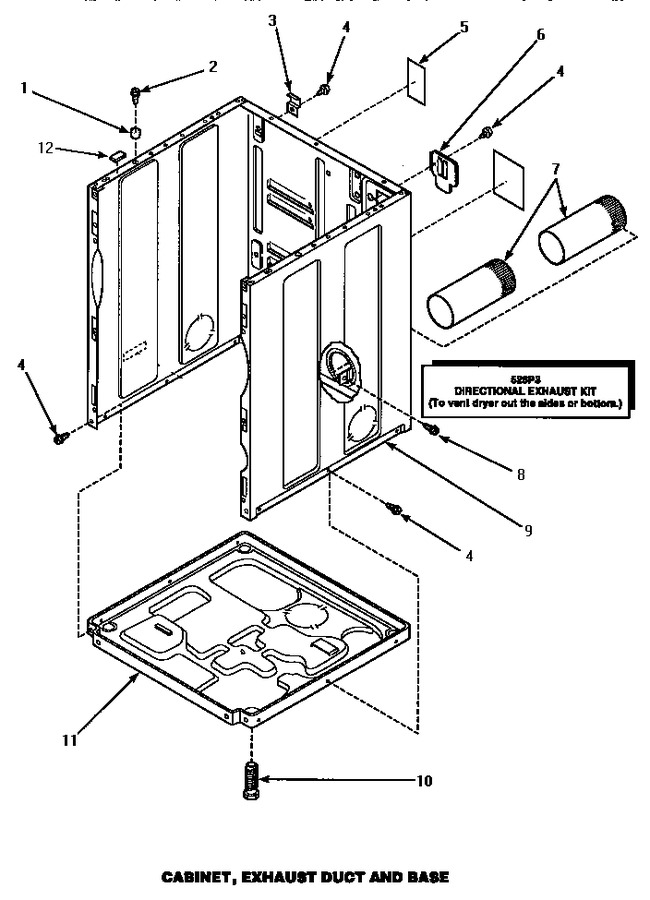

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56079		Locater, Panel			Immediately	$ 6.95
2	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
3	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
4	WP27001200		Screw   (Replaces: 33562)				$ 6.91
5	500670		Sticker Ng Or Mixed Ga		Appelez-nous	-
6	500114		Panel, Access Cover		Appelez-nous	-
7	500064		Exhaust Duct		Appelez-nous	-
8	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
9	500001LP		Assy, Cab (home)		Appelez-nous	-
9	500001HP		Assy, Cabinet		Appelez-nous	-
9	500001WP		Cabinet, Dryer & Washer (wht)		Appelez-nous	-
10	Y500101		Leg, Leveling (plastic)				$ 25.84
11	D514245		Base, Dryer   (Replaces: 500070)				$ 101.22
12	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
NI	528P3		Side Vent Kit				$ 133.36
