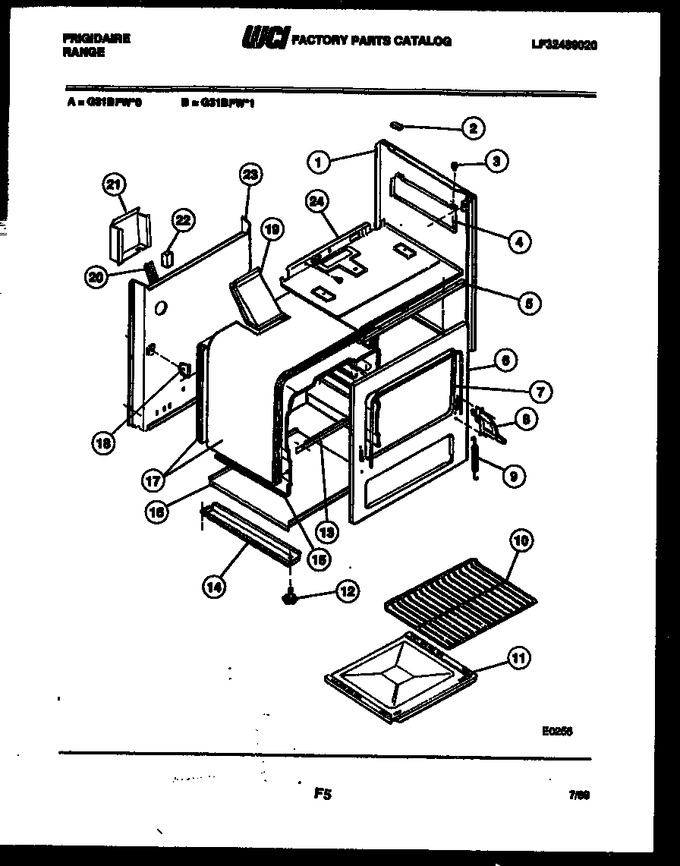

02 - Backguard And Cooktop Parts


03 - Broiler Drawer Parts


04 - Door Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Pnl - B/s (white)		Appelez-nous	-
2	08068052		Grommet-top Rear (4)		Appelez-nous	-
3	08008012		Grommet-top Front (2)		Appelez-nous	-
4	08008018		Shield - Heat Rh		Appelez-nous	-
5	08014027		Support - Cont Pnl		Appelez-nous	-
6	08008022		Seal - Door		Appelez-nous	-
7	3205578		Frame - Front		Appelez-nous	-
8	3204670		Hinge - Door Rh		Appelez-nous	-
9	08011484		Spring - Door (2)		Appelez-nous	-
10	3015714		Rack (2)		Appelez-nous	-
11	3018282		Liner-oven-bottom		Appelez-nous	-
12	08068019		Screw - Levelling (4)		Appelez-nous	-
13	3131080		Support - Oven Bttm		Appelez-nous	-
14	08068047		Rail - Base (2)		Appelez-nous	-
15	3018284		Liner - Side Rh		Appelez-nous	-
16	08011515		Bottom - Oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support-oven Rear (2)		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3131046		Channel - Wire		Appelez-nous	-
21	08008357		Cover - Spark Module		Appelez-nous	-
22	3015197		Spark - Module		Appelez-nous	-
23	08012600		Back - Main		Appelez-nous	-
24	3017174		Burner Box Bottom		Appelez-nous	-
*37438	3934059		Anti - Tip Bracket		Appelez-nous	-
*37438	3131791		Clip - Bodyside (2)				$ 19.01
*37439	3015241		Spacer		Appelez-nous	-
15A	3018285		Liner - Side Lh		Appelez-nous	-
15B	3018347		Liner - Top		Appelez-nous	-
15C	3018995		Liner - Back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
4A	08011552		Shield - Heat Lh		Appelez-nous	-
8A	3204672		Hinge - Door Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
