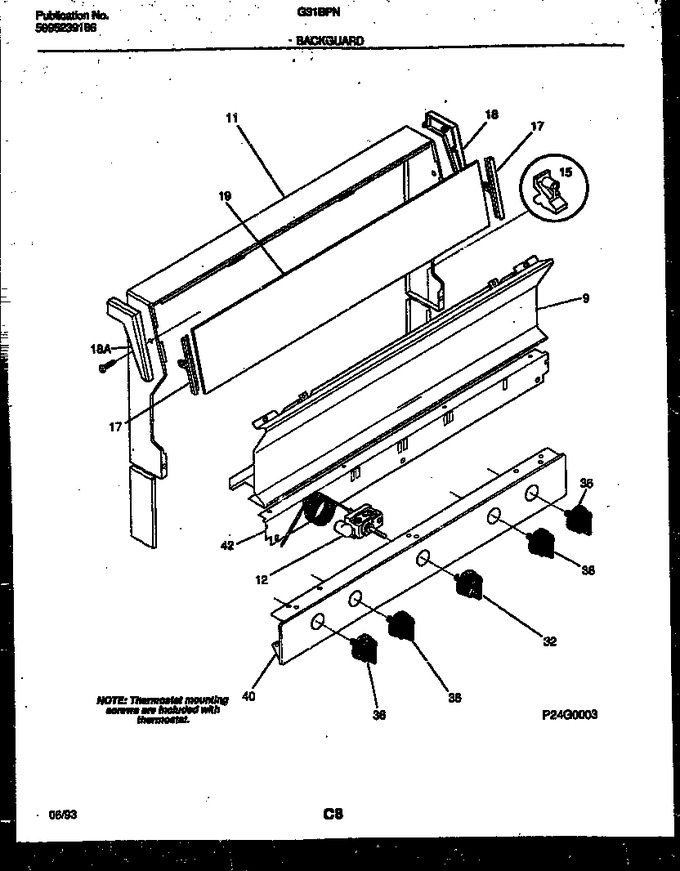

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 3131239 | Trim Splasher |
|
- | |||||
| 11 | 3131238 | Trim, Wrapper |
|
- | |||||
| 12 | 5303935014 | Thermostat,oven ,w/screws |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | Cap, End (rh) |
|
- | |||||
| 19 | 5303211171 | Panel-control, Glass |
|
- | |||||
| 32 | 5303299705 | Knob-thermostat |
|
- | |||||
| 36 | 5303210280 | Knob, Top Valve (4) |
|
- | |||||
| 40 | 5303211129 | Panel - Manifold |
|
- | |||||
| 42 | 5303211001 | Trim-vent |
|
- | |||||
| 18A | 3131229 | Cap, End (lh) |
|
- |
