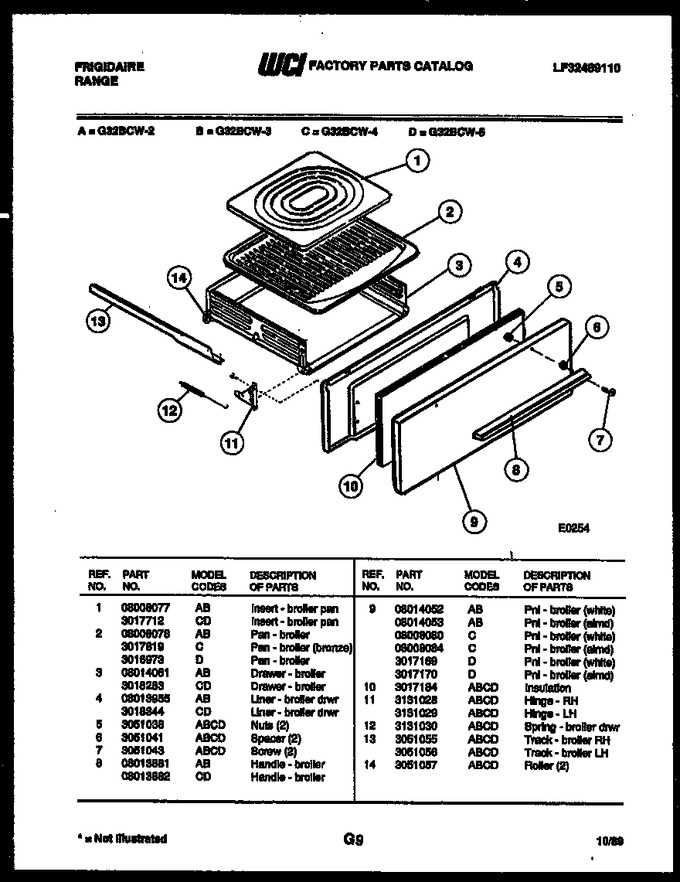

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08008077 | Insert - Broiler Pan |
|
- | |||||
| 1 | 3017712 | Insert-broiler Pan |
|
- | |||||
| 2 | 3017819 | Pan - Broiler (bronze) |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018344 | Liner - Broiler Drwr |
|
- | |||||
| 6 | 3051041 | Spacer (2) |
|
- | |||||
| 7 | 3051043 | Screw (2) |
|
- | |||||
| 8 | 08013881 | Handle - Broiler |
|
- | |||||
| 9 | 08014053 | Pnl - Broiler (almd) |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge - Rh |
|
- | |||||
| 12 | 3131030 | Spring - Broiler Drwr |
|
- | |||||
| 13 | 3051055 | Track - Broiler Rh |
|
- | |||||
| 13 | 3051056 | Track - Broiler Lh |
|
- | |||||
| 14 | 3051057 | Roller (2) |
|
- | |||||
| 11A | 3131029 | Hinge - Lh |
|
- |
