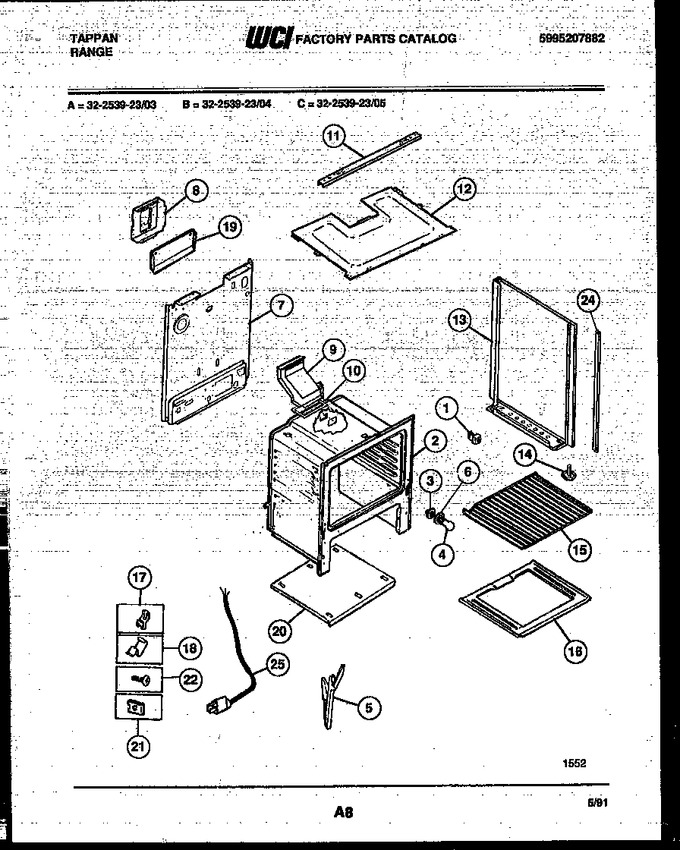

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 5303131569 | Channel - Door Hng |
|
- | |||||
| 6 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Rear Wall |
|
- | |||||
| 9 | 3131909 | Flue |
|
- | |||||
| 10 | 08067965 | Gasket-flue |
|
- | |||||
| 11 | 3203441 | Channel - Brnr Supt |
|
- | |||||
| 12 | 3204962 | Burner Box |
|
- | |||||
| 13 | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 14 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 15 | 5303131973 | Rack, Oven |
|
- | |||||
| 16 | 5303212540 | Bottom, Oven |
|
- | |||||
| 18 | 08067962 | Fstnr, Wire |
|
- | |||||
| 19 | 3131191 | Cover, Flue |
|
- | |||||
| 20 | 5303270160 | Base-broiler |
|
- | |||||
| 21 | 3012323 | Fstnr - Hng |
|
- | |||||
| 22 | 316282700 | Screw-oven Bttm. (Replaces: 3131732) |
|
$ 9.93 | |||||
| 24 | 5303051326 | Trim-vent B/s (2) |
|
- | |||||
| 25 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| *52931 | 19100200010 | Diagram-wiring (not For Purchase) |
|
- | |||||
| *52931 | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- | |||||
| 13A | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 16A | 3017142 | Insulation (wrapper) (non-illustrated) |
|
$ 193.50 | |||||
| 16B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 17A | 5303011805 | Clip-tubing |
|
- | |||||
| 17B | 08067961 | Fastener-power Cord |
|
- | |||||
| 19A | 3014226 | Support - Oven Bttm (non-illustrated) |
|
- | |||||
| 21A | 5303015372 | Cover, Front Main (non-illustrated) |
|
- | |||||
| 22A | 3131244 | Cover-power Cord, (non-illustrated) |
|
- | |||||
| 22B | 3018607 | Cover-plate (non-illustrated) |
|
$ 10.50 | |||||
| 22C | 3934056 | Anti, Tip Bracket (non-illustrated) |
|
- | |||||
| 22D | 3131192 | Cover, Rear Wall (non-illustrated) |
|
- | |||||
| 6A | 3202799 | Shield-flue, (non-illustrated) |
|
- |
