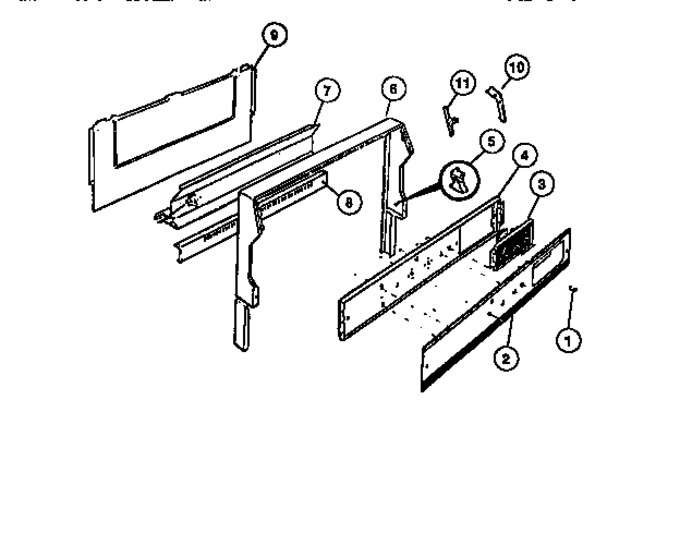

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210414 | Knob, Clock |
|
- | |||||
| 2 | 5303210613 | Panel, Control |
|
- | |||||
| 3 | 5303210612 | Clock, Single Stem |
|
- | |||||
| 4 | 5303204636 | Plate, Instr. Mtg |
|
- | |||||
| 5 | 5303131237 | Support, Backguard |
|
- | |||||
| 6 | 3131238 | Trim, Wrapper |
|
- | |||||
| 7 | 3131239 | Trim Splasher |
|
- | |||||
| 8 | 5303211001 | Trim-vent |
|
- | |||||
| 9 | 655T444P02 | Shield, Rear Wall |
|
- | |||||
| 10 | 3131229 | Cap, End (lh) |
|
- | |||||
| 11 | 3131240 | Trim, Glass Rtnr |
|
- | |||||
| 10A | 3131230 | Cap, End (rh) |
|
- |
