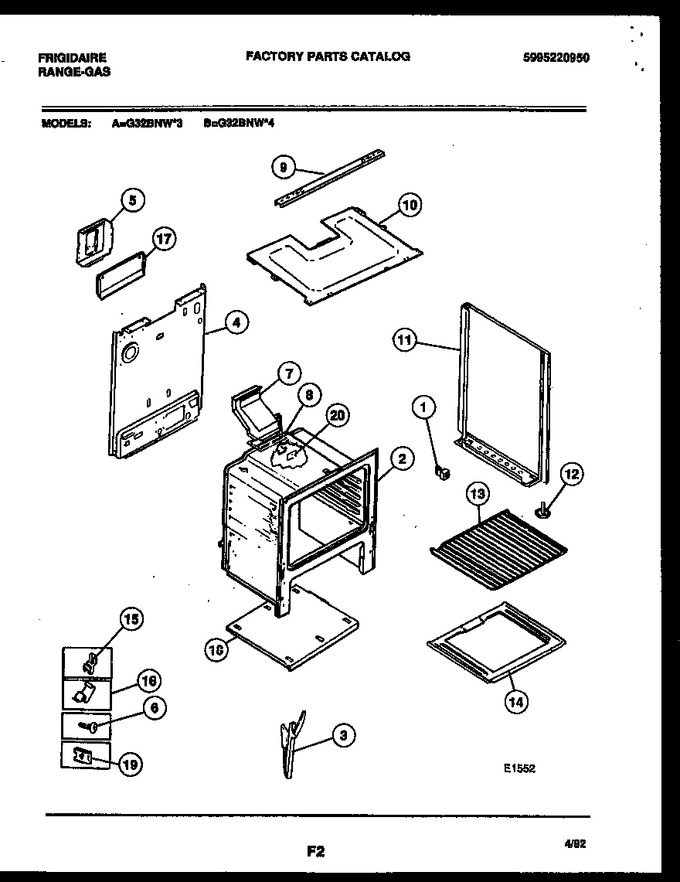

07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	316007001		Channel - Dr Hng				$ 234.55
4	3203082		Back-main		Appelez-nous	-
5	3131660		Shield, Rear Wall		Appelez-nous	-
6	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
7	3131909		Flue		Appelez-nous	-
8	08067965		Gasket-flue		Appelez-nous	-
9	3203441		Channel, Brnr Support		Appelez-nous	-
10	3204962		Burner Box		Appelez-nous	-
11	5303269518		Panel-b/s-rh-white		Appelez-nous	-
12	5303203397		Screw, Leveling (4)				$ 14.49
13	5303131973		Rack, Oven (2)		Appelez-nous	-
14	5303212540		Bottom - Open		Appelez-nous	-
15	5303285144		Clip-thermo				$ 5.30
16	08067962		Fstnr, Wire		Appelez-nous	-
17	3202799		Shield, Flue		Appelez-nous	-
18	5303270160		Base-broil		Appelez-nous	-
19	3203010		Fastener, Hinge   (Replaces: 5303012323)				$ 14.89
20	3018607		Cover Plate				$ 10.50
*61616	3131191		Cover, Flue		Appelez-nous	-
*61616	3051218		Plate,oven Light		Appelez-nous	-
*61616	3131190		Cover-vent		Appelez-nous	-
11A	5303269519		Panel-b/s-lh-white		Appelez-nous	-
14A	3017142		Insulation, Oven Wrap (non-illustrated)				$ 193.50
14B	3203541		Insulation, Oven Back (non-illustrated)		Appelez-nous	-
15A	08067961		Fastener-power Cord		Appelez-nous	-
17A	3014226		Supt, Oven Bottom (non-illustrated)		Appelez-nous	-
18A	3934056		Anti, Tip Bracket (non-illustrated)		Appelez-nous	-
18B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
19A	5303015372		Cover, Front Main (non-illustrated)		Appelez-nous	-
3A	5304534377		Cord, Power (non-illustrated)   (Replaces: 3202006)				$ 26.85

    View Diagram in Separate Window       Print Part List
