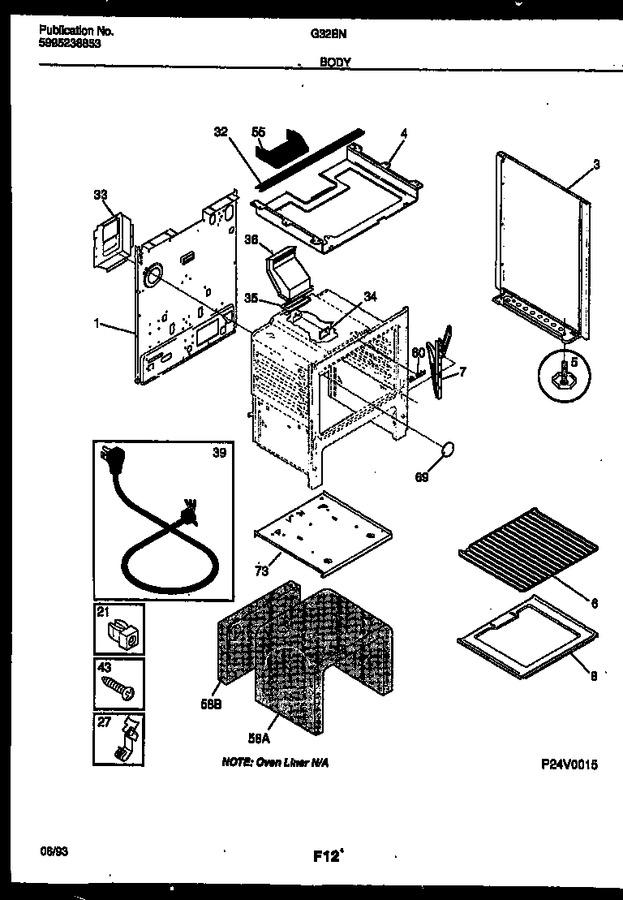

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203082 | Back-main |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 3204962 | Burner Box |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | Cap, End (rh) |
|
- | |||||
| 19 | 5303210613 | Panel-control Glass |
|
- | |||||
| 20 | 5303210612 | Clock/timer, Analog 1 Stem |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 5303210414 | Knob, Clock |
|
- | |||||
| 32 | 3203441 | Channel-burner Supt |
|
- | |||||
| 32 | 5303210281 | Knob, Thermostat |
|
- | |||||
| 33 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 5303210280 | Knob, Top Valve (4) |
|
- | |||||
| 36 | 3131909 | Flue |
|
- | |||||
| 39 | 5304534377 | Cord-electric Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 40 | 5303271189 | Panel-manifold |
|
- | |||||
| 41 | 3203443 | Cover-manifold |
|
- | |||||
| 42 | 5303211001 | Trim-vent |
|
- | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1-7/16 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 55 | 3131191 | Cover, Flue |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 73 | 5303281627 | Base-broiler |
|
- | |||||
| *78021 | 08067961 | Fastener-power Cord |
|
- | |||||
| 18A | 3131229 | Cap, End (lh) |
|
- | |||||
| 39A | 3131244 | Cover-power Cord, (non-illustrated) |
|
- | |||||
| 3A | 5303269519 | Panel-bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 55A | 3202799 | Shield-flue, (non-illustrated) |
|
- | |||||
| 58A | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58B | 3203541 | Insulation, Oven Back |
|
- | |||||
| 5A | 5303288460 | Nut, T-type, Leveing Screw (non-illustrated) |
|
$ 27.14 | |||||
| 5B | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 8A | 3014226 | Support-oven Bottom, (non-illustrated) |
|
- |
