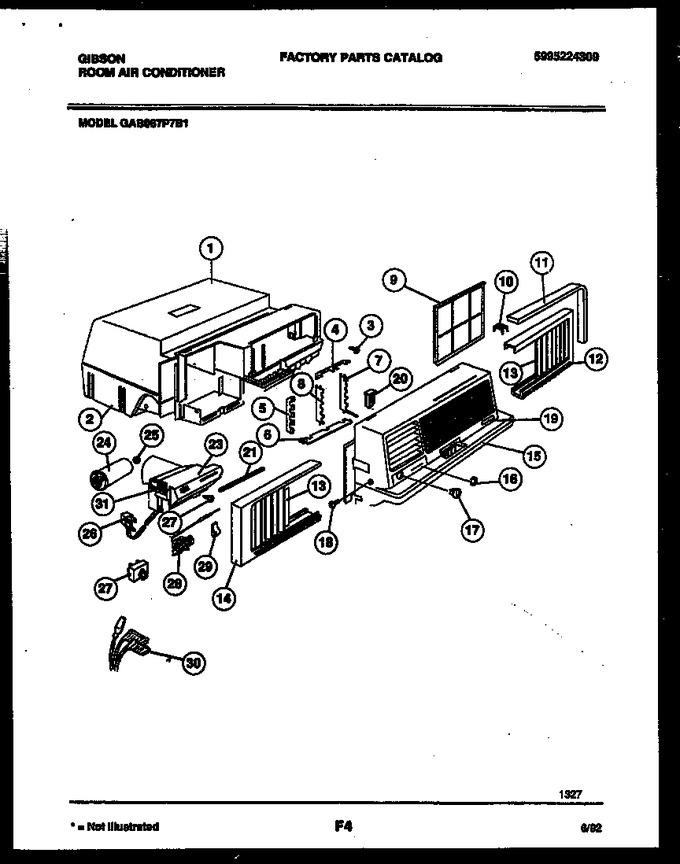

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303286208 | Wrapper-upper |
|
- | |||||
| 2 | 5303925112 | Wrapper-lower W/insulation |
|
- | |||||
| 3 | 3015312 | Screw-wrapper (7) |
|
- | |||||
| 4 | 5303285477 | Link-top |
|
- | |||||
| 5 | 5303285476 | Link-vertical |
|
- | |||||
| 6 | 5303289531 | Louver (5) |
|
- | |||||
| 7 | 5303289530 | Louver W/ Handle (1) |
|
- | |||||
| 8 | 5303289529 | Louver-vertical (2) |
|
- | |||||
| 9 | 5303289534 | Filter |
|
- | |||||
| 10 | 5303285468 | Clip (2) |
|
- | |||||
| 11 | 5303285464 | Seal-frame Rh-lh |
|
- | |||||
| 12 | 5303285499 | Frame-less Accordian Rh |
|
- | |||||
| 13 | 5303285500 | Accordian Closure |
|
- | |||||
| 14 | 5303285498 | Frame, Less Accordian Lh |
|
- | |||||
| 15 | 5303289528 | Front Complete (does Not Include Filter) |
|
- | |||||
| 16 | 5303285472 | Knob-slide |
|
- | |||||
| 17 | 5303285471 | Knob-control |
|
- | |||||
| 18 | 5303271346 | Screw-front |
|
- | |||||
| 19 | 5303289532 | Nameplate |
|
- | |||||
| 20 | 5303289568 | Button Lock-frame |
|
- | |||||
| 21 | 5303270043 | Seal (cut To Size) |
|
- | |||||
| 22 | 3015312 | Screw |
|
- | |||||
| 23 | 5303285458 | Panel Control |
|
- | |||||
| 24 | 5303285463 | Capacitor-35-5/370v |
|
- | |||||
| 25 | 5303270092 | Nut |
|
- | |||||
| 26 | 5303285461 | Power Cord |
|
- | |||||
| 27 | 5303285459 | Switch |
|
- | |||||
| 28 | 5303285460 | Control-temp |
|
- | |||||
| 29 | 5303286381 | Clip |
|
- | |||||
| 30 | 5303285462 | Harness |
|
- | |||||
| 31 | 5303285452 | Knob-vent |
|
- | |||||
| 32 | 5303289533 | Dial Plate |
|
- | |||||
| *58515 | 5303211056 | Bracket-window Lock |
|
- | |||||
| *58515 | 5303289567 | Nameplate-rear |
|
- | |||||
| *58515 | 3002603 | Gasket-window Sash |
|
- |
