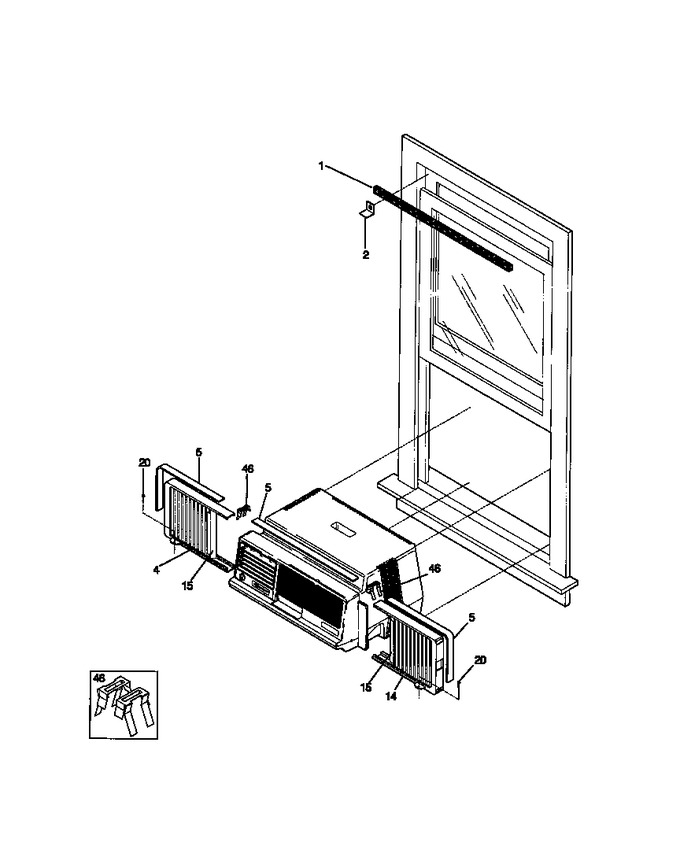

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303285498 | Frame, Lh |
|
- | |||||
| 5 | 5303285464 | Seal, Frame |
|
- | |||||
| 14 | 5303285499 | Frame, Rh |
|
- | |||||
| 15 | 5303285500 | Accordian |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 46 | 5303285468 | Clip-accordian |
|
- |
