Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303302856 Wrapper Appelez-nous -
7 5303303089 Link-louvers Appelez-nous -
8 309603901 Louver, W/items 7, 9, 10 Appelez-nous -
9 5303303087 Louver-vertical, (4) Appelez-nous -
10 5303303088 Louver-vertical W/handle Appelez-nous -
12 5303303242 Filter Appelez-nous -
17 309603601 Front Complete Appelez-nous -
19 5303304368 Dial Plate Appelez-nous -
20 5303303693 Knob-control Appelez-nous -
25 5303302867 Vent Door Appelez-nous -
26 309100502 Handle-vent Door Appelez-nous -
28 309100401 Clip-front Appelez-nous -
29 5303303691 Screw, (8) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

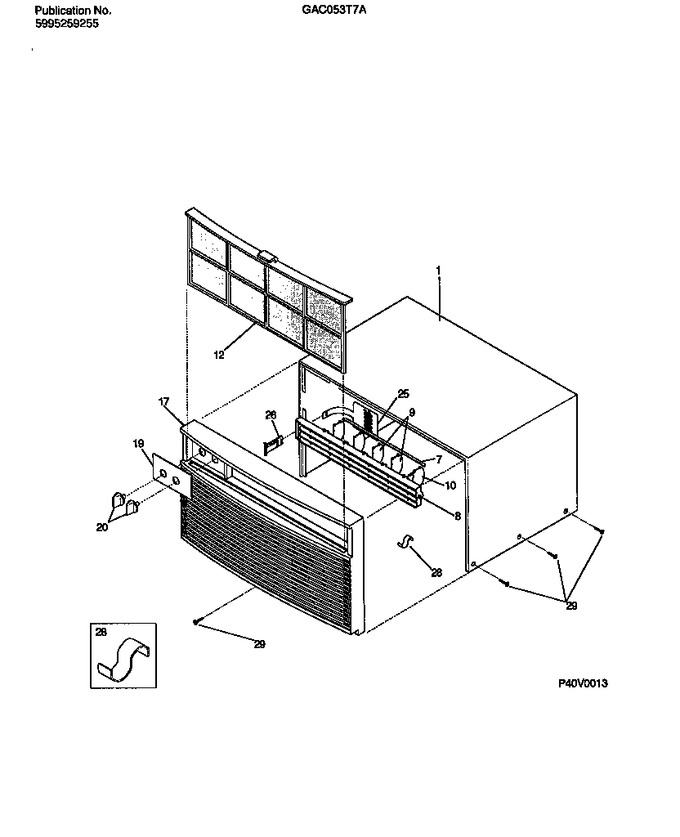

Diagram for GAC053T7A5
