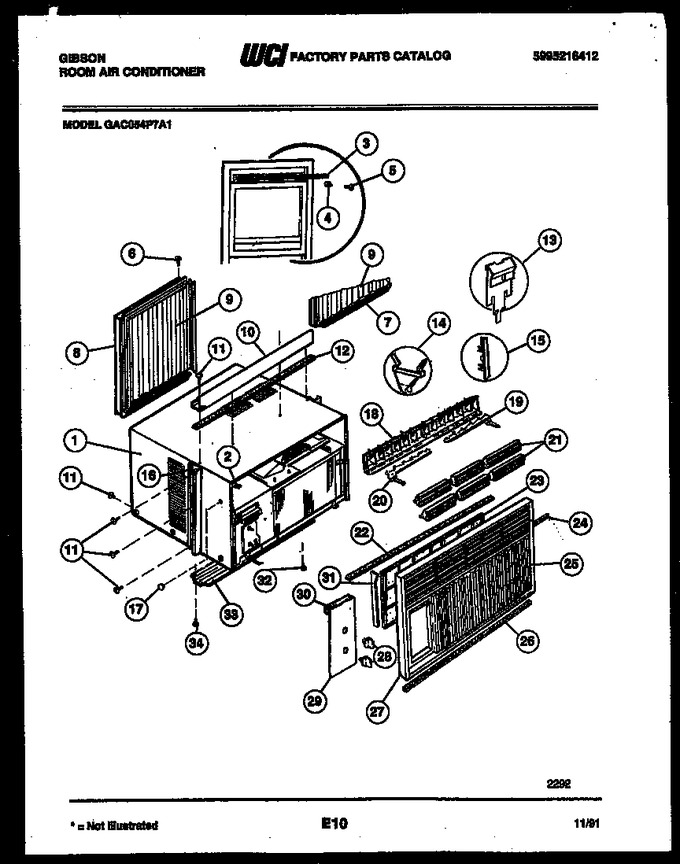

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 08010928 | Nut-front |
|
- | |||||
| 3 | 3002603 | Gasket-window Sash |
|
- | |||||
| 4 | 5303211056 | Bracket |
|
- | |||||
| 5 | 3002803 | Screw |
|
- | |||||
| 6 | 3002801 | Screw |
|
- | |||||
| 7 | 5303282371 | Frame-rh |
|
- | |||||
| 8 | 5303282370 | Frame-lh |
|
- | |||||
| 9 | 5303270075 | Accordion Closure |
|
- | |||||
| 10 | 5303270064 | Rail Top |
|
- | |||||
| 11 | 3015312 | Screw |
|
- | |||||
| 12 | 08016226 | Seal |
|
- | |||||
| 13 | 3201472 | Clip |
|
- | |||||
| 14 | 5303001844 | Clip |
|
- | |||||
| 15 | 5303017319 | Retainer-louver |
|
- | |||||
| 16 | 5303270073 | Retainer |
|
- | |||||
| 17 | 5303271346 | Screw-front |
|
- | |||||
| 18 | 5303002457 | Louvers |
|
- | |||||
| 19 | 5303002160 | Link-rh |
|
- | |||||
| 20 | 08017146 | Link-lh |
|
- | |||||
| 21 | 3017318 | Louvers |
|
- | |||||
| 22 | 3017398 | Seal-top |
|
- | |||||
| 23 | 3017518 | Filter |
|
- | |||||
| 24 | 3017137 | Seal-mullion |
|
- | |||||
| 25 | 5303280313 | Seal-side |
|
- | |||||
| 26 | 5303280312 | Seal Btm |
|
- | |||||
| 27 | 5303283756 | Front-complete |
|
- | |||||
| 28 | 5303017300 | Knob-control |
|
- | |||||
| 29 | 5303283755 | Dial-plate |
|
- | |||||
| 30 | 5303001861 | Seal |
|
- | |||||
| 31 | 3017518 | Rail-filter Lh |
|
- | |||||
| 32 | 08016080 | Screw-leveling |
|
- | |||||
| 33 | 530327002 | Rail-btm |
|
- | |||||
| 34 | 3001806 | Screw |
|
- | |||||
| 31A | 3017517 | Rail Filter Rh |
|
- |
