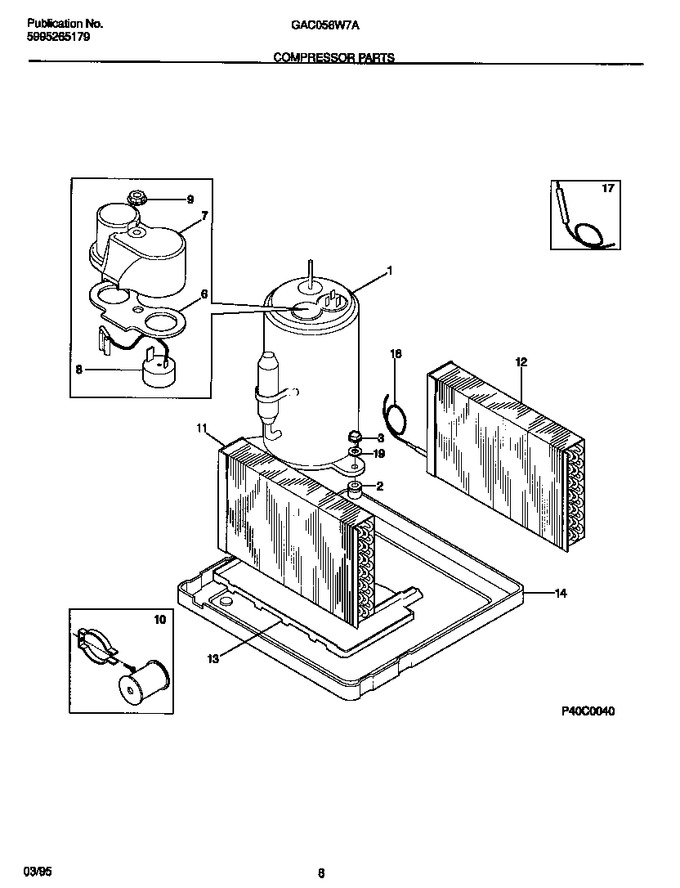

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925151 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 8 | 3201032 | Overload |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 309604205 | Evaporator |
|
- | |||||
| 12 | 5303307226 | Condenser |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5303303219 | Base |
|
- | |||||
| 16 | 5303289577 | Capillary Tube, Cut To 35`` |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- |
