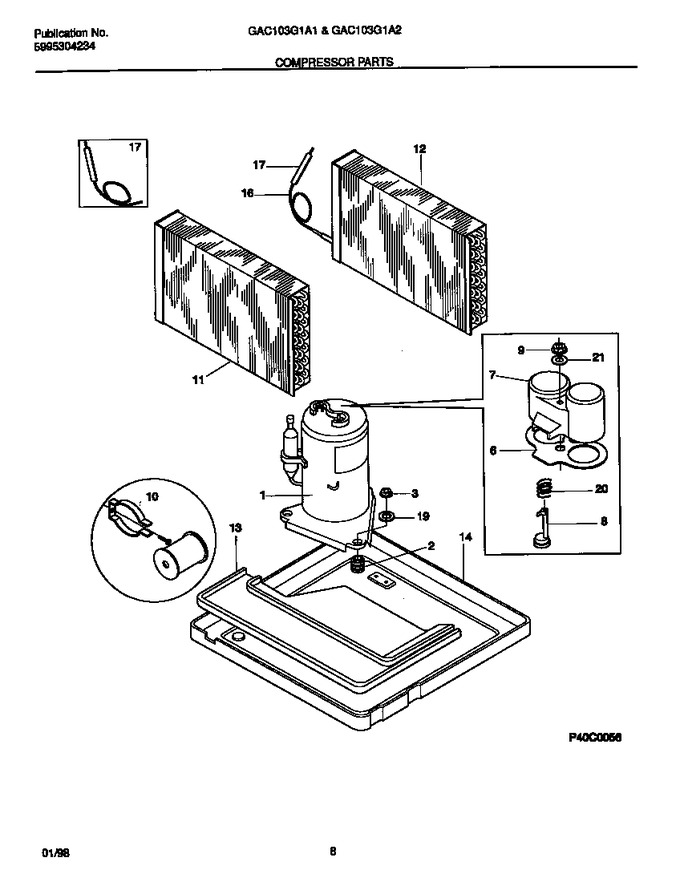

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309603103 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 6 | 5303291330 | Gasket-cover |
|
- | |||||
| 7 | 5303291329 | Cover-terminal |
|
- | |||||
| 8 | 5304403166 | Overload Protector |
|
- | |||||
| 9 | 5303294292 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309619303 | Evaporator |
|
- | |||||
| 12 | 5303303195 | Condenser |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304403281 | Base |
|
- | |||||
| 16 | 5303209547 | Capillary Tube |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 20 | 5303291328 | Spring-overload |
|
- | |||||
| 21 | 5303293809 | Washer-cover |
|
- |
