SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical And Air Handling Parts
04 - System Parts
New Model Search:

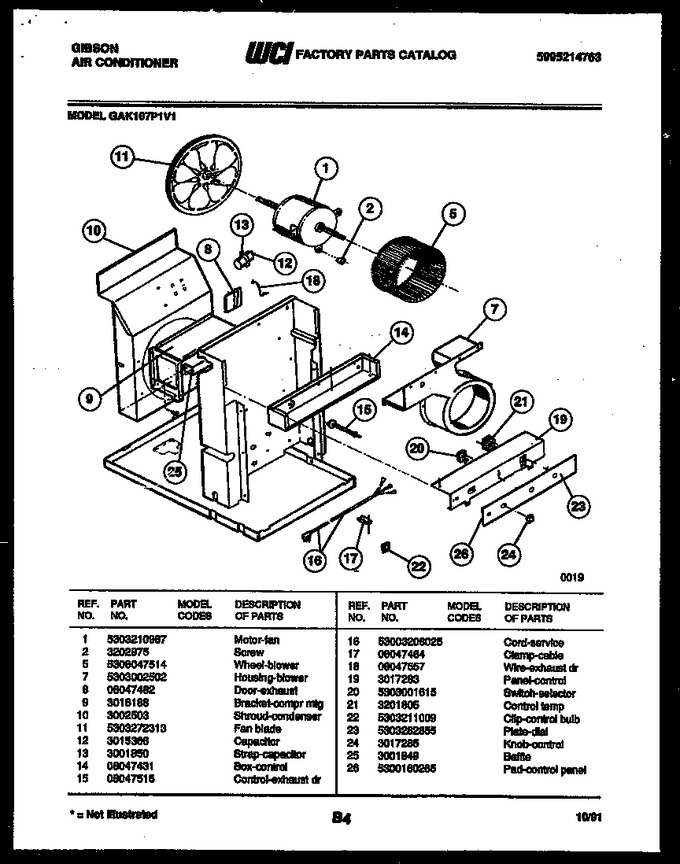

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210987 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 5 | 5308047514 | Wheel-blower |
|
- | |||||
| 7 | 5303002502 | Housing-blower |
|
- | |||||
| 8 | 08047482 | Door - Exhaust |
|
- | |||||
| 9 | 3016188 | Bracket-compr Mtg |
|
- | |||||
| 10 | 3002503 | Shroud - Condenser |
|
- | |||||
| 11 | 5303272313 | Fan Blade |
|
$ 118.76 | |||||
| 12 | 3015366 | Capacitor |
|
- | |||||
| 13 | 3001850 | Strap-capacitor |
|
- | |||||
| 14 | 08047431 | Box - Control |
|
- | |||||
| 15 | 08047515 | Control-exhaust Dr |
|
- | |||||
| 16 | 53003208025 | Cord-service |
|
- | |||||
| 17 | 08047464 | Clamp-cable |
|
- | |||||
| 18 | 08047557 | Wire-exhaust Dr |
|
- | |||||
| 19 | 3017283 | Panel - Control |
|
- | |||||
| 20 | 5303001615 | Switch-selector |
|
- | |||||
| 21 | 3201805 | Control Temp |
|
- | |||||
| 22 | 5303211009 | Clip-control Bulb |
|
- | |||||
| 23 | 5303282855 | Plate-dial |
|
- | |||||
| 24 | 3017285 | Knob-control |
|
- | |||||
| 25 | 3001849 | Baffle |
|
- | |||||
| 26 | 5300160265 | Pad-control Panel |
|
- |
