SELECT A DIAGRAM

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts

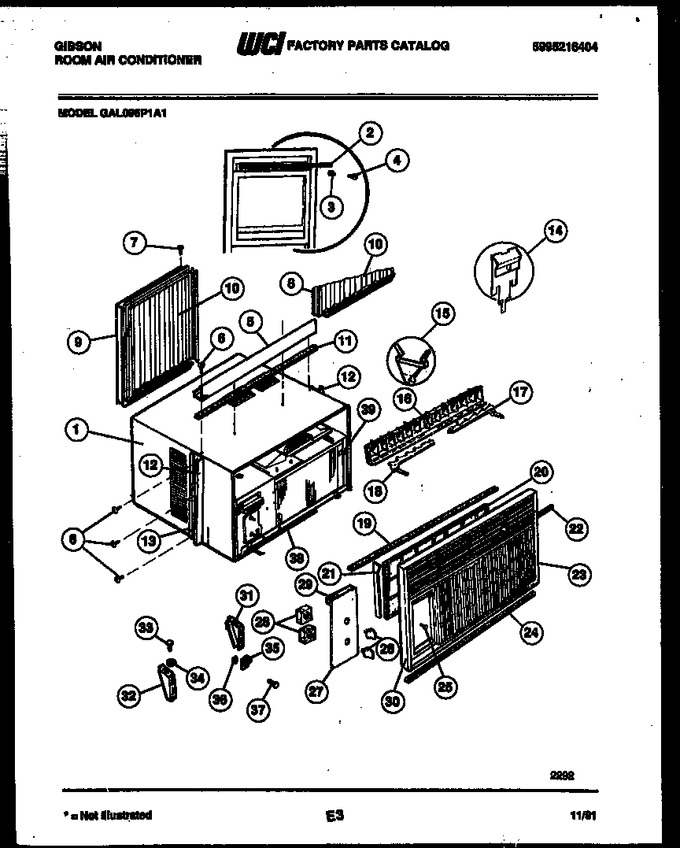

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207184		Wrapper		Appelez-nous	-
2	3002603		Gasket-window Sash		Appelez-nous	-
3	5303211056		Bracket		Appelez-nous	-
4	3002803		Screw		Appelez-nous	-
5	3001873		Rail, Top		Appelez-nous	-
6	3015312		Screw		Appelez-nous	-
7	3002801		Screw-frame		Appelez-nous	-
8	3203060		Frame-rh		Appelez-nous	-
9	3002964		Frame-lh		Appelez-nous	-
10	5303211382		Accordian Closure		Appelez-nous	-
11	5303207200		Seal		Appelez-nous	-
12	3202966		Retainer-frame		Appelez-nous	-
13	5303276728		Seal,retainer		Appelez-nous	-
14	3200446		Clip		Appelez-nous	-
15	5303001844		Clip		Appelez-nous	-
16	5303002458		Louvers & Link		Appelez-nous	-
17	5303002164		Link Rh		Appelez-nous	-
18	5303002165		Link-lh		Appelez-nous	-
19	3018407		Seal-top		Appelez-nous	-
20	3018657		Filter		Appelez-nous	-
21	3018547		Rail-filter, Lh		Appelez-nous	-
22	3018413		Seal-mullion		Appelez-nous	-
23	5303002458		Frame		Appelez-nous	-
24	5303278925		Seal-btm		Appelez-nous	-
25	3017304		Screw-front		Appelez-nous	-
26	5303017300		Knob-control		Appelez-nous	-
27	5303271798		Dial-plate		Appelez-nous	-
28	5303001775		Spacer		Appelez-nous	-
29	5303001984		Seal		Appelez-nous	-
30	5303207203		Seal-side		Appelez-nous	-
31	3016224		Bracket Support-rh		Appelez-nous	-
32	3016225		Bracket Support-lh		Appelez-nous	-
33	5303281649		Screw-bracket		Appelez-nous	-
34	3017023		Nut (4)		Appelez-nous	-
35	5303211056		Bracket		Appelez-nous	-
36	3007759		Nut (2)		Appelez-nous	-
37	3007756		Screw		Appelez-nous	-
38	5314949603		Seal Chassis Btm		Appelez-nous	-
39	3015325		Brace - Front		Appelez-nous	-
1A	5303208912		Grille Rear (non-illustrated)		Appelez-nous	-
1B	3018409		Nameplate-grille (non-illustrated)		Appelez-nous	-
21A	3018548		Rail-filter, Rh		Appelez-nous	-
23A	5303283700		Front Complete (non-illustrated)		Appelez-nous	-
