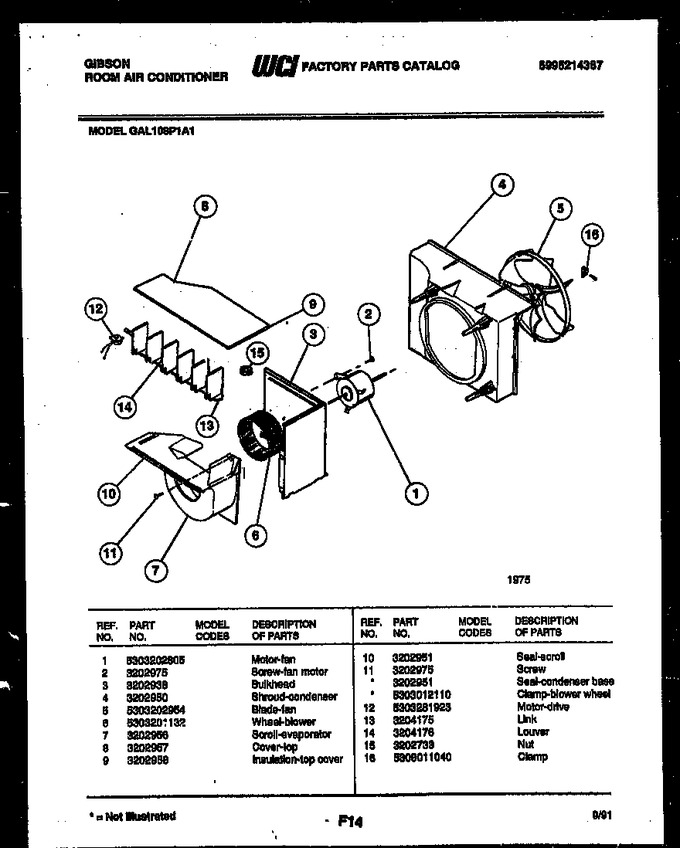

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202805 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw - Fan Motor |
|
- | |||||
| 3 | 3202938 | Bulkhead |
|
- | |||||
| 4 | 3202950 | Shroud-condenser |
|
- | |||||
| 5 | 5303202954 | Blade-fan |
|
- | |||||
| 6 | 5303201132 | Wheel - Blower |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 8 | 3202957 | Cover-top |
|
- | |||||
| 9 | 3202958 | Insulation-top Cover |
|
- | |||||
| 10 | 3202951 | Seal-scroll |
|
- | |||||
| 11 | 3202975 | Screw |
|
- | |||||
| 12 | 5303281923 | Motor-drive |
|
- | |||||
| 13 | 3204175 | Link |
|
- | |||||
| 14 | 3204176 | Louver |
|
- | |||||
| 15 | 3202733 | Nut |
|
- | |||||
| 16 | 5308011040 | Clamp |
|
- | |||||
| 11A | 3202951 | Seal-condenser Base (non-illustrated) |
|
- | |||||
| 11B | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
